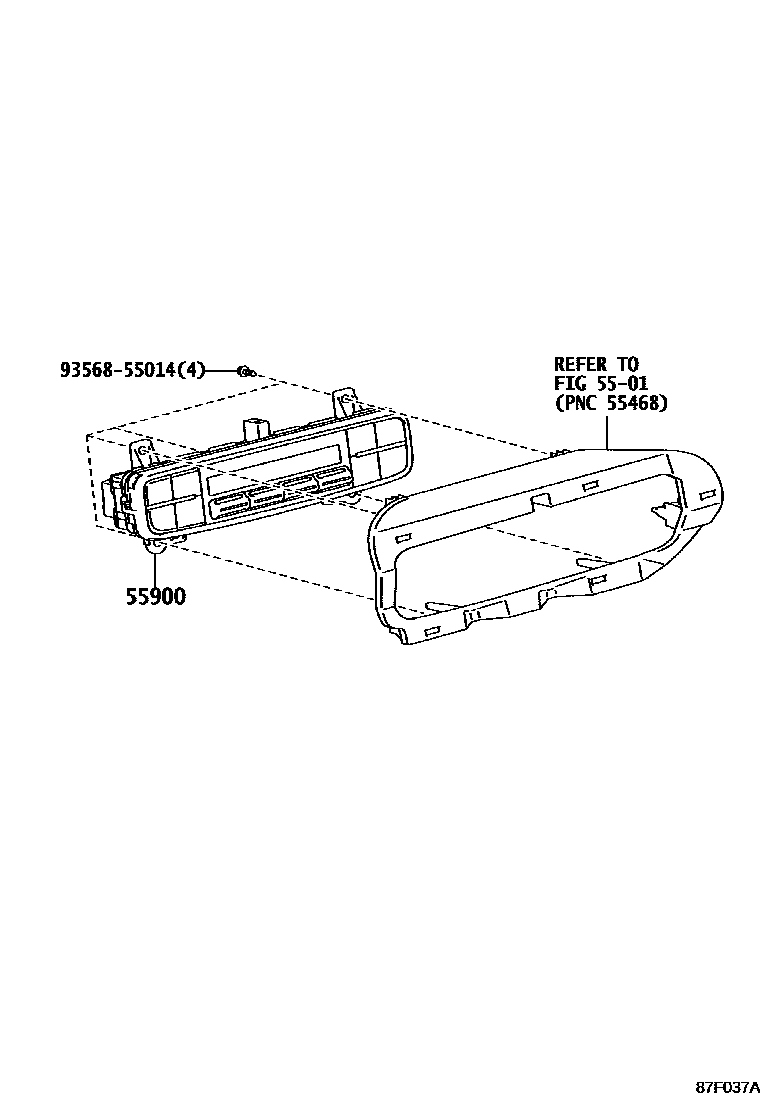

Toyota SCION IM/IM — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55900CONTROL ASSY, AIR CONDITIONER

main55900-12F00i201506

9356855014

main93568-55014

3 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT for Toyota SCION IM/IM

This section contains 20 genuine Toyota parts for the HEATING & AIR CONDITIONING - CONTROL & AIR DUCT system of the Toyota SCION IM/IM. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, DUCT, HEATER TO REGISTER, NO.1, DUCT, HEATER TO REGISTER, NO.2, CONTROL ASSY, AIR CONDITIONER, NOZZLE ASSY, DEFROSTER.
