Toyota SCION IA/YARIS R/IA — WATER PUMP

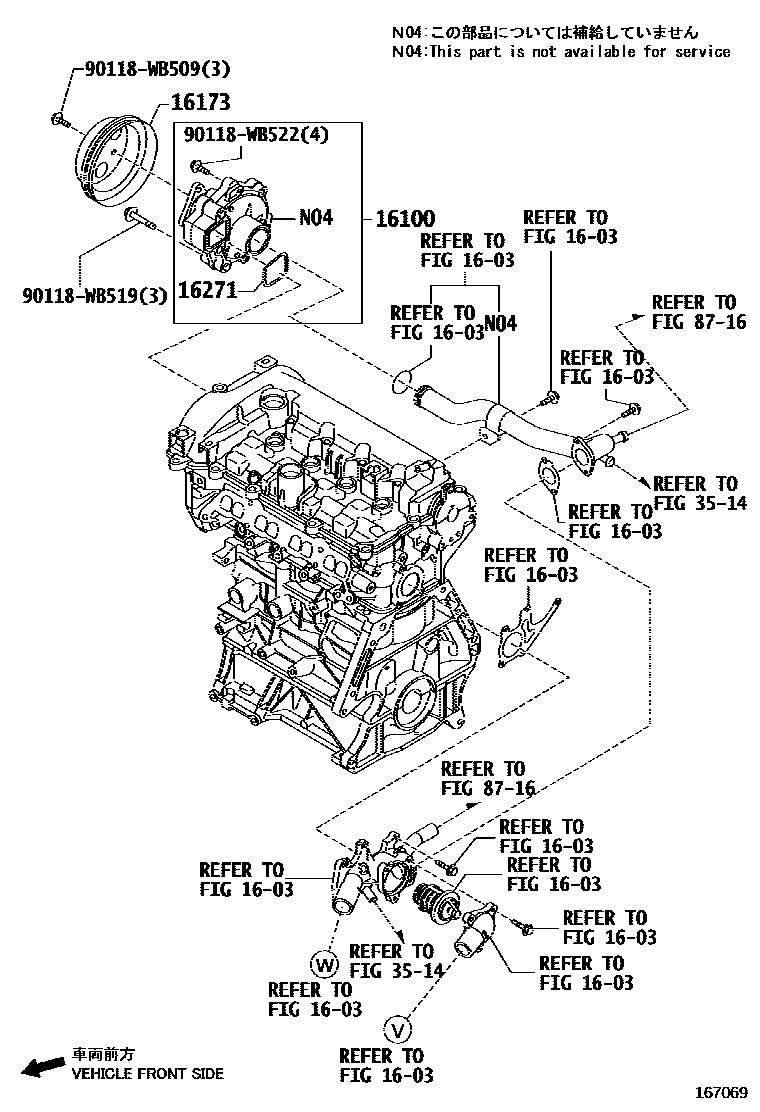

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-WB001i201508-201808

main16100-WB002i202002

16173PULLEY, WATER PUMP

main16173-WB001i201508-201808

16271GASKET, WATER PUMP

main16271-WB001i201508-201808

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

90118WB509

main90118-WB509

90118WB519

main90118-WB519

90118WB522

main90118-WB522

9 parts on this diagram · 2 diagrams in section

WATER PUMP for Toyota SCION IA/YARIS R/IA

This section contains 11 genuine Toyota parts for the WATER PUMP system of the Toyota SCION IA/YARIS R/IA. Key components include: RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, PULLEY, WATER PUMP, GASKET, WATER PUMP, OIL COOLER & TUBE (ATM).
