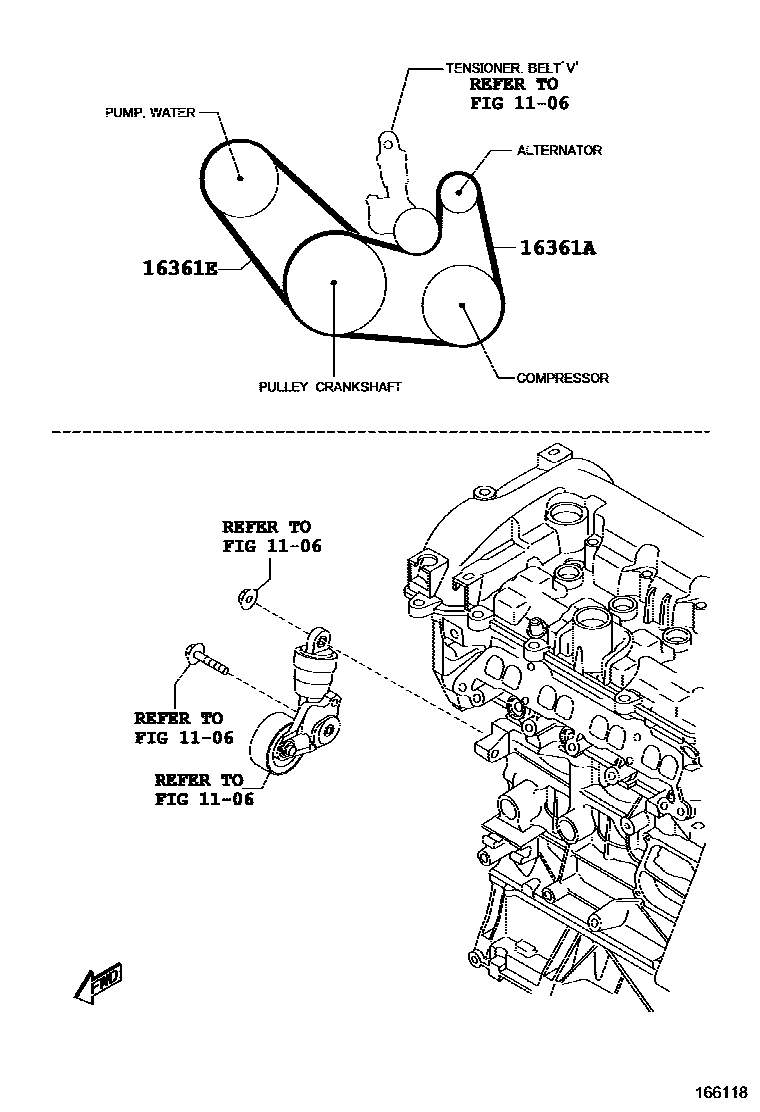

Toyota SCION IA/YARIS R/IA — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16361ABELT, V(FOR FAN & ALTERNATOR)

main90118-WB455i201506-201610

main90118-WBA55i201610

16361EBELT, V(FOR WATER PUMP & CRANKSHAFT PULLEY)

main90118-WB464i201508-201808

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota SCION IA/YARIS R/IA

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota SCION IA/YARIS R/IA. Key components include: TIMING GEAR COVER & REAR END PLATE, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR WATER PUMP & CRANKSHAFT PULLEY).
