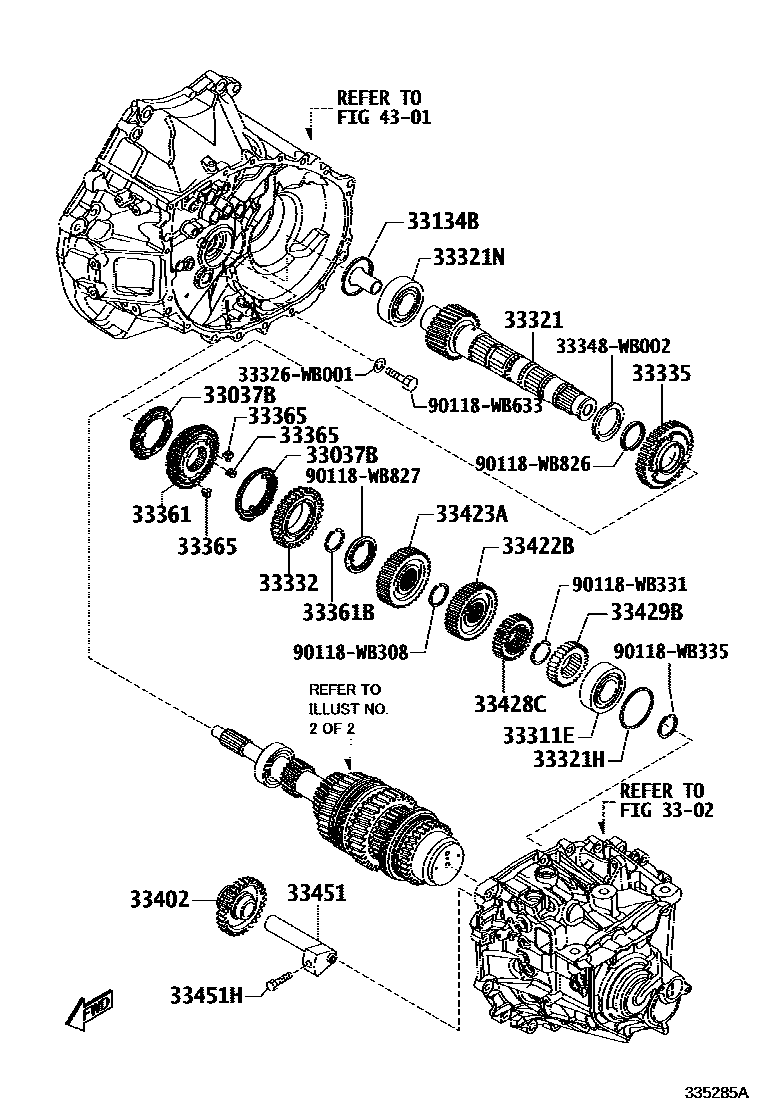

Toyota SCION IA/YARIS R/IA — TRANSMISSION GEAR (MTM)
3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33134BCOVER, OUTPUT SHAFT(MTM)
33311SHAFT, INPUT
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33321SHAFT, OUTPUT
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33332GEAR, 2ND
33335GEAR, 1ST
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33365KEY, SYNCHROMESH SHIFTING, NO.1
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33429BGEAR, 6TH DRIVEN
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
4301FRONT AXLE HOUSING & DIFFERENTIAL
33326WB001PLATE, BEARING LOCK
main33326-WB001
33348WB002WASHER, 1ST GEAR THRUST
main33348-WB002
90118WB308
main90118-WB308
90118WB331
main90118-WB331
90118WB335
main90118-WB335
90118WB633
main90118-WB633
90118WB826
main90118-WB826
90118WB827
main90118-WB827
29 parts on this diagram · 2 diagrams in section
TRANSMISSION GEAR (MTM) for Toyota SCION IA/YARIS R/IA
This section contains 48 genuine Toyota parts for the TRANSMISSION GEAR (MTM) system of the Toyota SCION IA/YARIS R/IA. Key components include: CLUTCH HOUSING & TRANSMISSION CASE (MTM), RING SET, SYNCHRONIZER, NO.1, COVER, OUTPUT SHAFT(MTM), COVER, INPUT SHAFT(MTM), SHAFT, INPUT.
