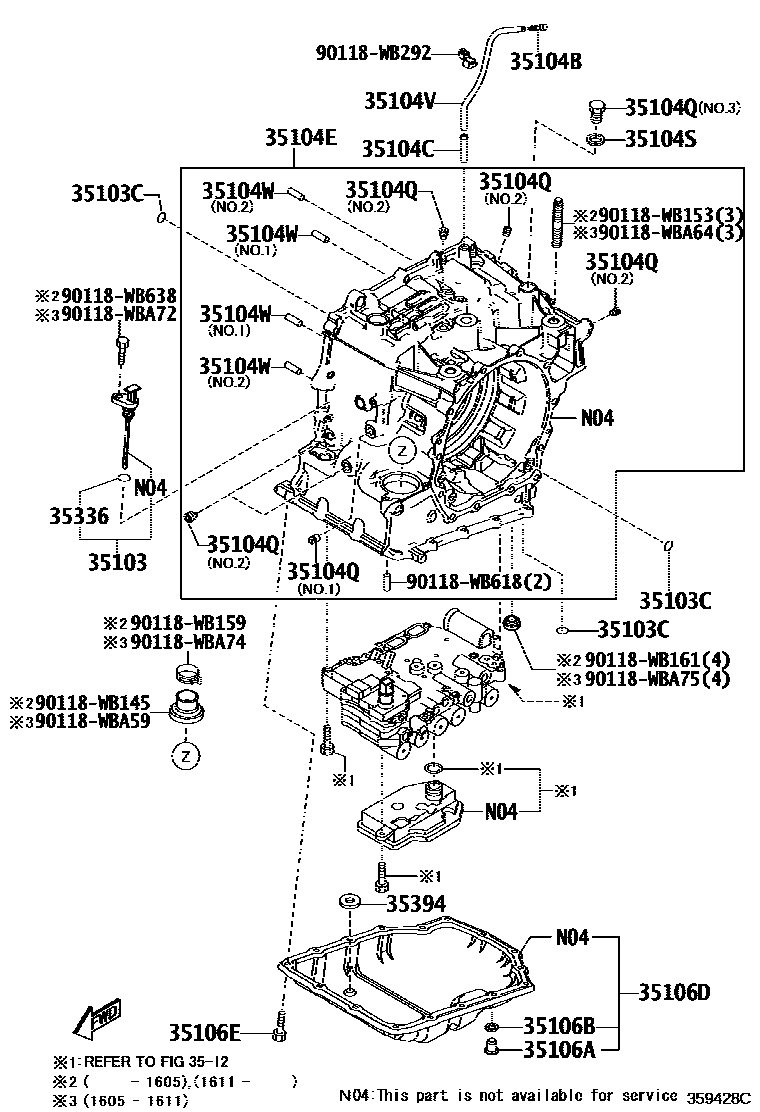

Toyota SCION IA/YARIS R/IA — TRANSMISSION CASE & OIL PAN (ATM)

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-WB001i201506-201605

main35103-WB002i201605-201611

35103CRING, O

main90118-WB154×3i201506-201605

main90118-WBA65×3i201605-201611

35104BPLUG, BREATHER, NO.1 (ATM)

main90118-WB144i201508-201808

35104CPLUG, BREATHER, NO.2 (ATM)

main90118-WB259i201506

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-WB001i201506-201605

main35141-WB002i201605-201611

main35141-WB003i201902

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90118-WB141i201508-201808

NO.1

main90118-WB143×5i201506

NO.2

main90118-WB151i201508-201808

NO.3

main90118-WBB60i201902

NO.4

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90118-WB670i201508-201908

35104VHOSE (FOR BREATHER PLUG)

main35121-WB001i201508-201808

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90118-WB621×2i201508-201908

NO.1

main90118-WB623×2i201508-201908

NO.2

35106APLUG SUB-ASSY, DRAIN (ATM)

main90118-WB139i201508-201808

35106BGASKET, DRAIN PLUG (ATM)

main90118-WB669i201508-201908

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-WB001i201506-201605

WITHOUT(R-DOT LABEL)

main35106-WB002i201506

WITH(R-DOT LABEL)

main35106-WB003i201605-201611

WITHOUT(R-DOT LABEL)

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90118-WB537i201506-201605

main90118-WBA70i201605-201611

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90118-WB140i201508-201808

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-WB002i201508-201808

90118WB145

main90118-WB145

90118WB153

main90118-WB153

90118WB159

main90118-WB159

90118WB161

main90118-WB161

90118WB292

main90118-WB292

90118WB618

main90118-WB618

90118WB638

main90118-WB638

90118WBA59

main90118-WBA59

90118WBA64

main90118-WBA64

90118WBA72

main90118-WBA72

90118WBA74

main90118-WBA74

90118WBA75

main90118-WBA75

27 parts on this diagram · 7 diagrams in section
