Toyota SCION IA/YARIS R/IA — TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

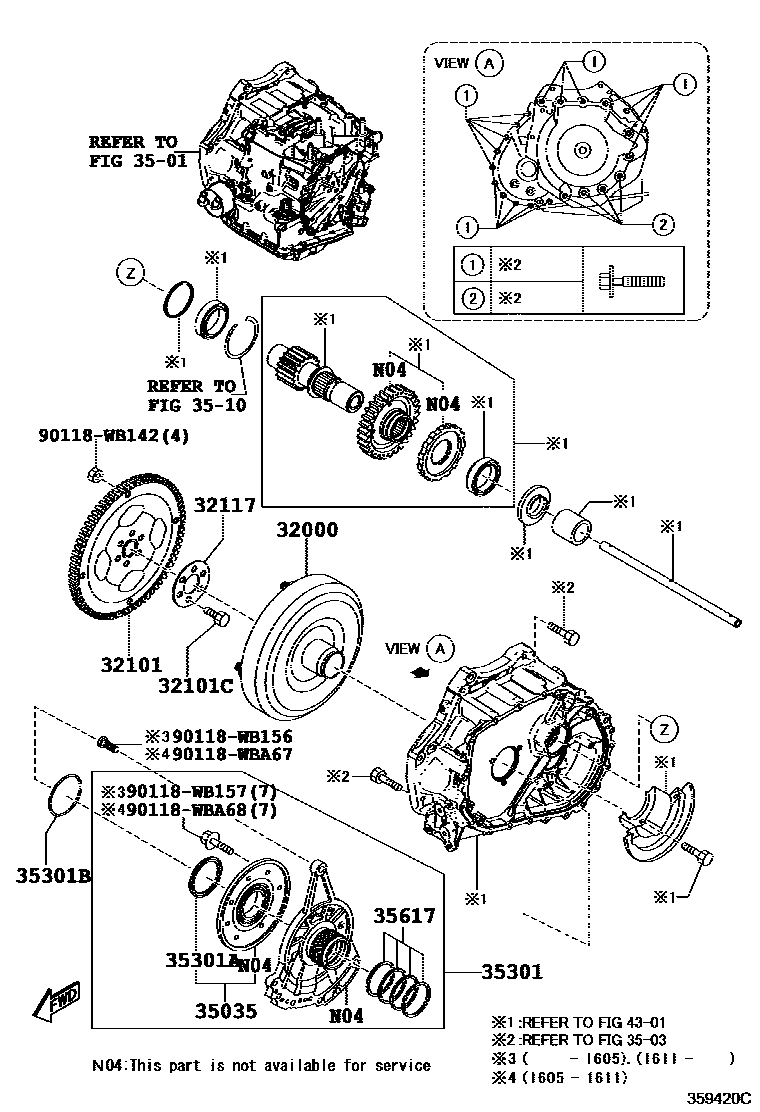

Parts diagram

32000CONVERTER ASSY, TORQUE

main32000-WB001i201508-201808

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-WB001i201506-201510

main32101-WB002i201510-201609

main32101-WB003i201609

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90118-WB536×6i201508-201908

32117SPACER, DRIVE PLATE, REAR

main32117-WB001i201506

3501TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

→ Go to FIG 35-01

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-WB001i201508-201605

main35035-WB002i201605-201611

main35035-WB003i201805-201809

main35035-WB004i201804-201805

main35035-WB005i201809-201908

main35035-WB006i201908

3510PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

→ Go to FIG 35-10

35301BODY SUB-ASSY, FRONT OIL PUMP

main35310-WB001i201508-201605

main35310-WB003i201605-201611

main35310-WB004i201709-201804

main35310-WB005i201805-201809

main35310-WB006i201804-201805

main35310-WB007i201809-201905

main35310-WB008i201905

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90118-WB148i201508-201808

main90118-WBC13i201908

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90118-WB149i201508-201605

main90118-WBA61i201605-201611

35617RING, CLUTCH DRUM OIL SEAL

main35613-WB001×4i201611

main35613-WB002×4i201605-201611

90118WB142

main90118-WB142

90118WB156

main90118-WB156

90118WB157

main90118-WB157

90118WBA67

main90118-WBA67

90118WBA68

main90118-WBA68

16 parts on this diagram · 2 diagrams in section

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) for Toyota SCION IA/YARIS R/IA
