Toyota SCION IA/YARIS R/IA — REAR WIPER
8504REAR WASHER
85110RMOTOR ASSY, REAR WIPER
85143RGROMMET, REAR WIPER MOTOR
85214RRUBBER, REAR WIPER
85220RBLADE ASSY, REAR WIPER
85241AARM, REAR WIPER
85292ACAP, REAR WIPER ARM HEAD
8604ANTENNA
90118WB654
main90118-WB654
90118WBB84
main90118-WBB84
10 parts on this diagram · 1 diagram in section

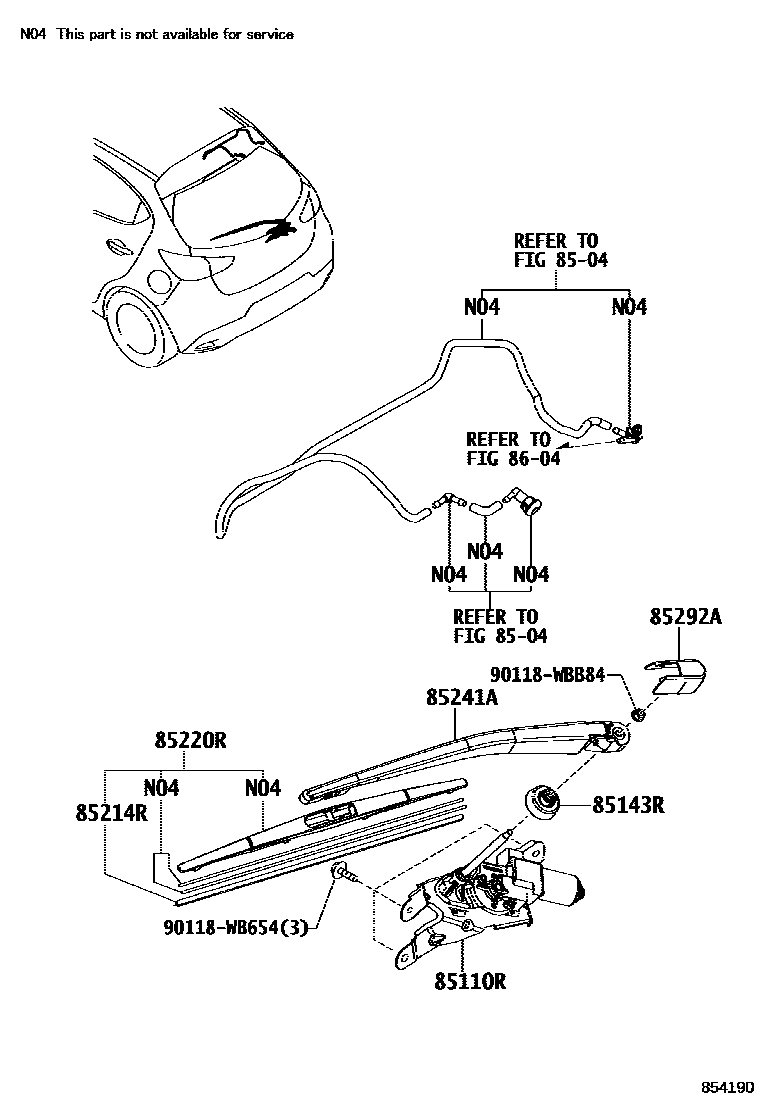

REAR WIPER for Toyota SCION IA/YARIS R/IA
This section contains 10 genuine Toyota parts for the REAR WIPER system of the Toyota SCION IA/YARIS R/IA. Key components include: REAR WASHER, MOTOR ASSY, REAR WIPER, GROMMET, REAR WIPER MOTOR, RUBBER, REAR WIPER, BLADE ASSY, REAR WIPER.
