Toyota SCION IA/YARIS R/IA — REAR LICENSE PLATE LAMP

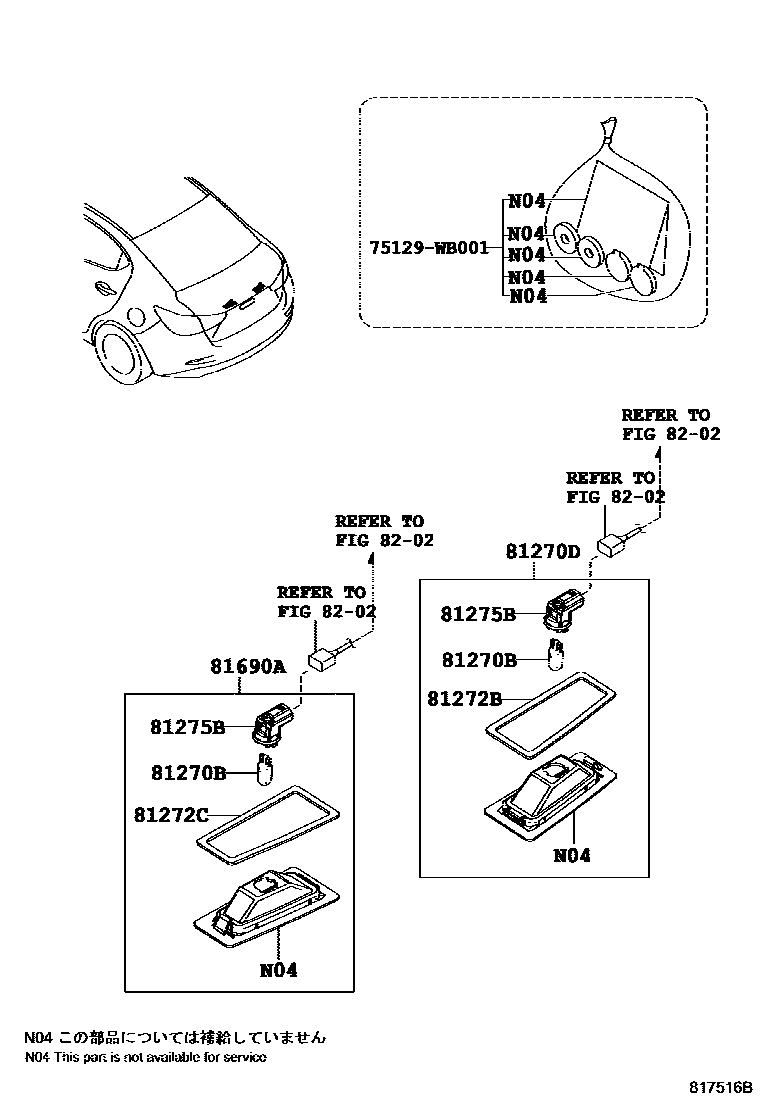

Parts diagram

81270BBULB (FOR LICENSE PLATE LAMP)

main90118-WB808×2i201506-201808

12V 5W

81270DLAMP ASSY, LICENSE PLATE, RH

main81270-WB001i201506-201808

main81270-WB004i201810-201903

main81270-WB005i201903

main81270-WB007i201908

81272BGASKET, LICENSE PLATE LAMP LENS, RH

main81274-WB001i201506-201808

81272CGASKET, LICENSE PLATE LAMP LENS, LH

main81274-WB002i201506-201808

81275BSOCKET PLUG, LICENSE PLATE LAMP

main81275-WB001×2i201506-201808

81690ALAMP ASSY, LICENSE PLATE, LH

main81270-WB002i201506-201808

main81270-WB003i201810-201903

main81270-WB006i201903

main81270-WB007i201908

8202WIRING & CLAMP

→ Go to FIG 82-02

75129WB001CUSHION, REAR LICENSE PLATE

main75129-WB001

8 parts on this diagram · 2 diagrams in section

REAR LICENSE PLATE LAMP for Toyota SCION IA/YARIS R/IA

This section contains 8 genuine Toyota parts for the REAR LICENSE PLATE LAMP system of the Toyota SCION IA/YARIS R/IA. Key components include: BULB (FOR LICENSE PLATE LAMP), LAMP ASSY, LICENSE PLATE, RH, GASKET, LICENSE PLATE LAMP LENS, RH, GASKET, LICENSE PLATE LAMP LENS, LH, SOCKET PLUG, LICENSE PLATE LAMP.
