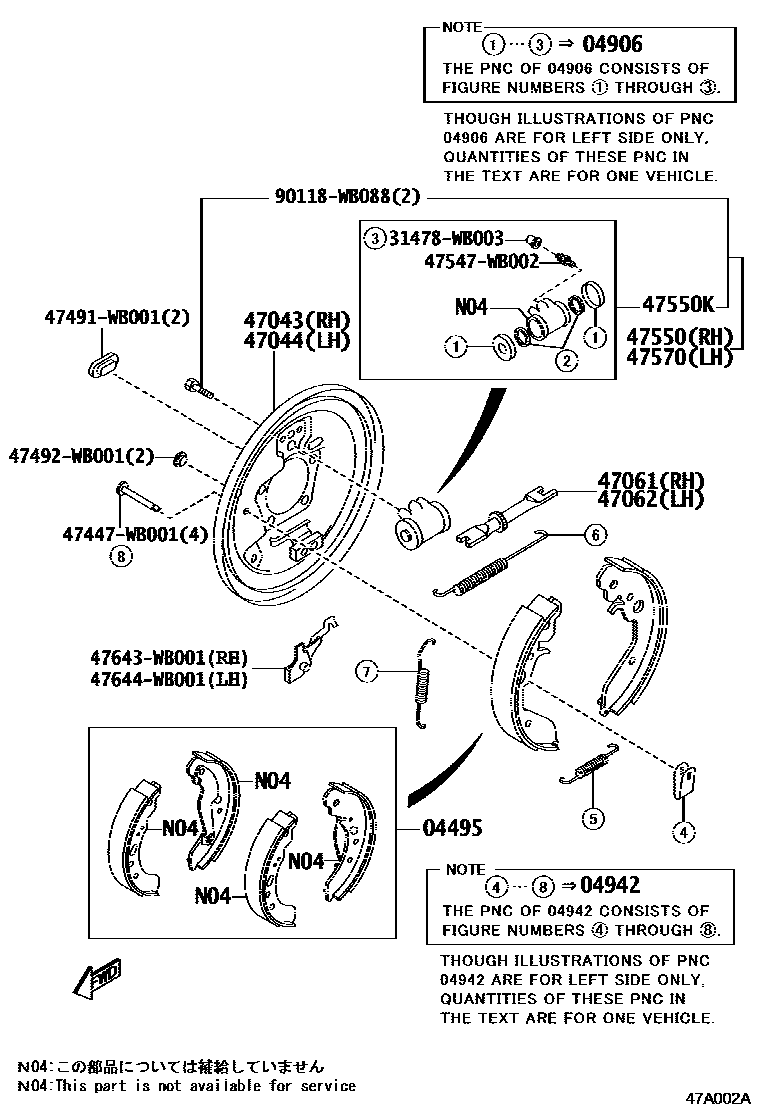

Toyota SCION IA/YARIS R/IA — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-WB001i201506-201808

04906CUP KIT, REAR WHEEL CYLINDER

main04474-WB001i201506-201808

04942SPRING KIT, REAR BRAKE

main04942-WB001i201506-201808

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-WB001i201506-201808

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-WB001i201506-201808

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-WB001i201506-201808

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-WB001i201506-201808

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-WB001i201506-201808

47550KCYLINDER KIT, REAR WHEEL

main47550-WB002×2i201506-201808

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-WB001i201506-201808

31478WB003CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-WB003

47447WB001PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-WB001

47491WB001PLUG, HOLE(FOR FRONT BRAKE)

main47491-WB001

47492WB001SEAL, REAR BRAKE ANCHOR BRACKET DUST

main47492-WB001

47547WB002PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-WB002

47643WB001LEVER, AUTOMATIC ADJUST, RH(FOR FRONT BRAKE)

main47643-WB001

47644WB001LEVER, AUTOMATIC ADJUST, LH(FOR FRONT BRAKE)

main47644-WB001

90118WB088

main90118-WB088

18 parts on this diagram · 1 diagram in section

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE for Toyota SCION IA/YARIS R/IA

This section contains 18 genuine Toyota parts for the REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE system of the Toyota SCION IA/YARIS R/IA. Key components include: SHOE KIT, REAR BRAKE, CUP KIT, REAR WHEEL CYLINDER, SPRING KIT, REAR BRAKE, PLATE SUB-ASSY, BRAKE BACKING, REAR RH, PLATE SUB-ASSY, BRAKE BACKING, REAR LH.
