Toyota SCION IA/YARIS R/IA — REAR BUMPER & BUMPER STAY

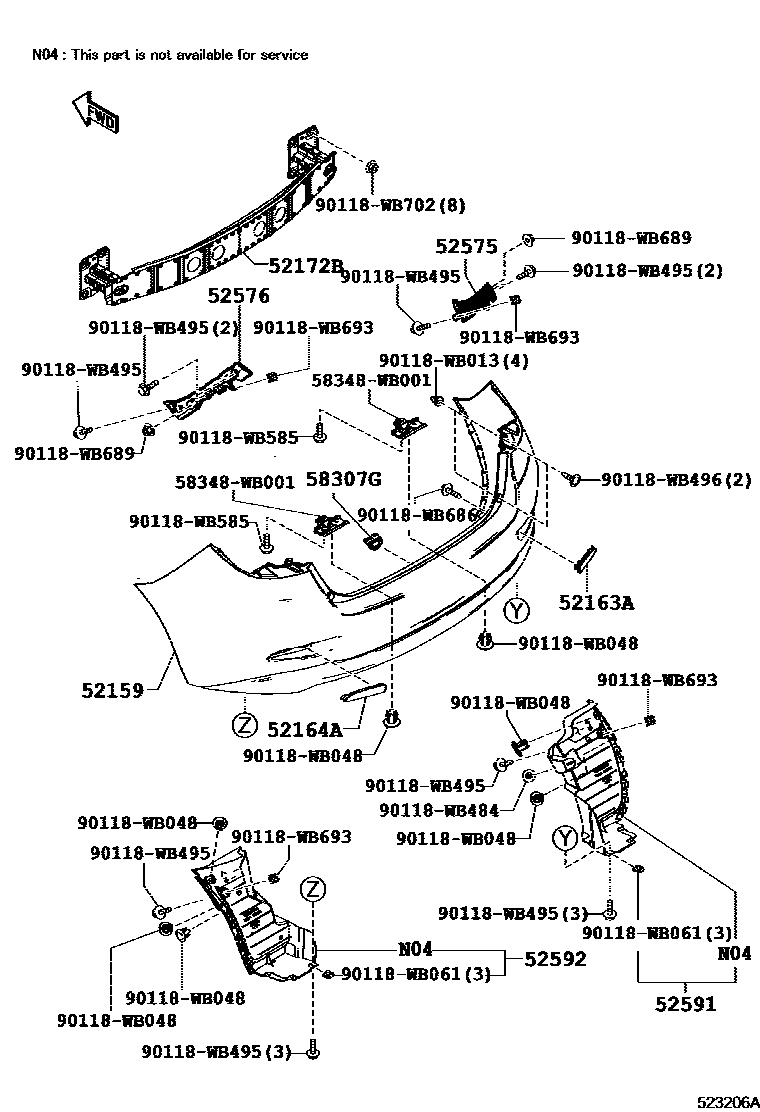

Parts diagram

52159COVER, REAR BUMPER

main52159-WB001i201506-201607

MATERIAL (PAINT TO MATCH),38P,41G,41W,42A,42M,44J,A4D

main52159-WB003i201506

main52159-WB004i201908

WITH(R-DOT LABEL)

main52159-WB005i201908

MATERIAL (PAINT TO MATCH),41G ,41W ,42A ,44J ,45P ,47A ,A4D,WITHOUT(R-DOT LABEL)

52163APLATE, REAR BUMPER, RH

main52163-WB002i201506-201808

52164APLATE, REAR BUMPER, LH

main52164-WB002i201506-201808

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-WB001i201506

main52172-WB002i201908

52575RETAINER, REAR BUMPER SIDE, RH

main52575-WB001i201506-201808

main52575-WB002i201908

52576RETAINER, REAR BUMPER SIDE, LH

main52576-WB001i201506-201808

main52576-WB002i201908

52591SEAL, REAR BUMPER SIDE, RH

main52591-WB001i201506-201808

main52591-WB002i201908

52592SEAL, REAR BUMPER SIDE, LH

main52592-WB001i201506-201808

main52592-WB002i201908

58307GRETAINER SUB-ASSY, BACK DOOR LOCK STRIKER

main58309-WB001i201506-201808

58348WB001COVER, REAR ABSORBER SERVICE HOLE

main58348-WB001

90118WB013

main90118-WB013

90118WB048

main90118-WB048

90118WB061

main90118-WB061

90118WB484

main90118-WB484

90118WB495

main90118-WB495

90118WB496

main90118-WB496

90118WB585

main90118-WB585

90118WB686

main90118-WB686

90118WB689

main90118-WB689

90118WB693

main90118-WB693

90118WB702

main90118-WB702

21 parts on this diagram · 4 diagrams in section

REAR BUMPER & BUMPER STAY for Toyota SCION IA/YARIS R/IA

This section contains 25 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota SCION IA/YARIS R/IA. Key components include: COVER, REAR BUMPER, PLATE, REAR BUMPER, RH, PLATE, REAR BUMPER, LH, REINFORCEMENT, REAR BUMPER, NO.2, RETAINER, REAR BUMPER SIDE, RH.
