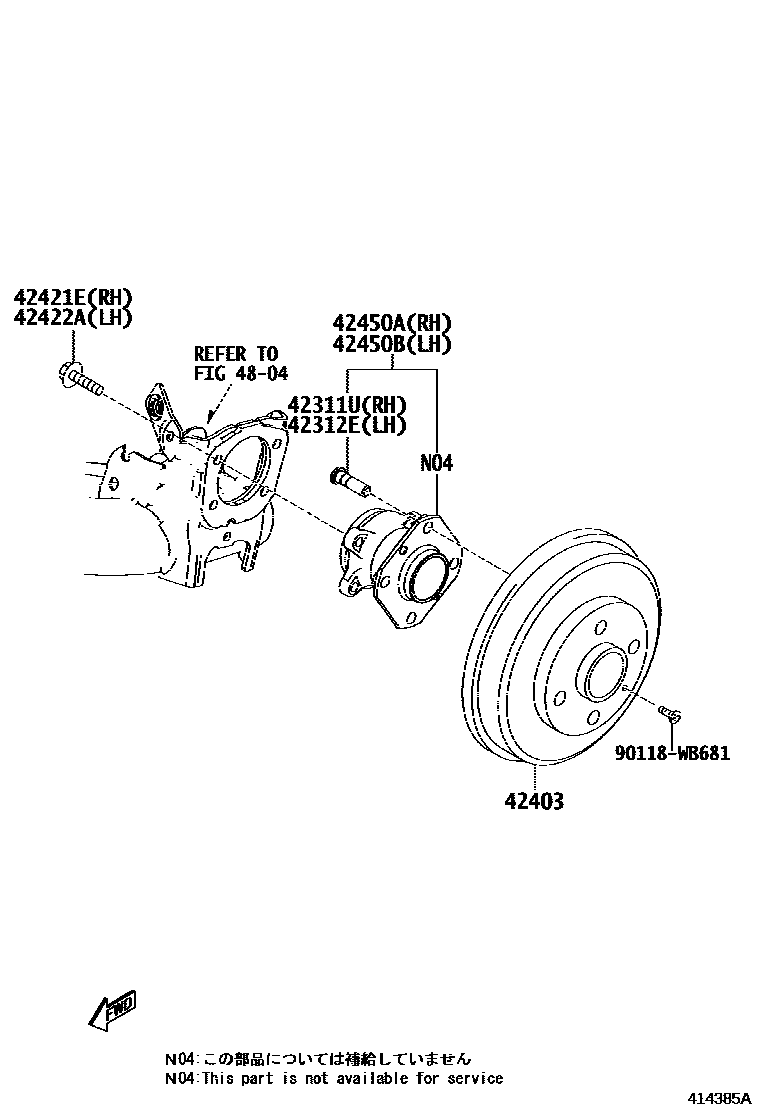

Toyota SCION IA/YARIS R/IA — REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90118-WB076×4i201508-201808

42312EBOLT, HUB(FOR REAR AXLE LH)

main90118-WB076×4i201508-201808

42403DRUM SUB-ASSY, REAR BRAKE

main42403-WB001×2i201508-201808

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90118-WB575×4i201506

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90118-WB575×4i201506

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-WB002i201508-201808

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-WB002i201508-201808

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

90118WB681

main90118-WB681

9 parts on this diagram · 1 diagram in section

REAR AXLE SHAFT & HUB for Toyota SCION IA/YARIS R/IA

This section contains 9 genuine Toyota parts for the REAR AXLE SHAFT & HUB system of the Toyota SCION IA/YARIS R/IA. Key components include: BOLT, HUB(FOR REAR AXLE RH), BOLT, HUB(FOR REAR AXLE LH), DRUM SUB-ASSY, REAR BRAKE, BOLT (FOR REAR AXLE BEARING CASE RH), BOLT (FOR REAR AXLE BEARING CASE LH).
