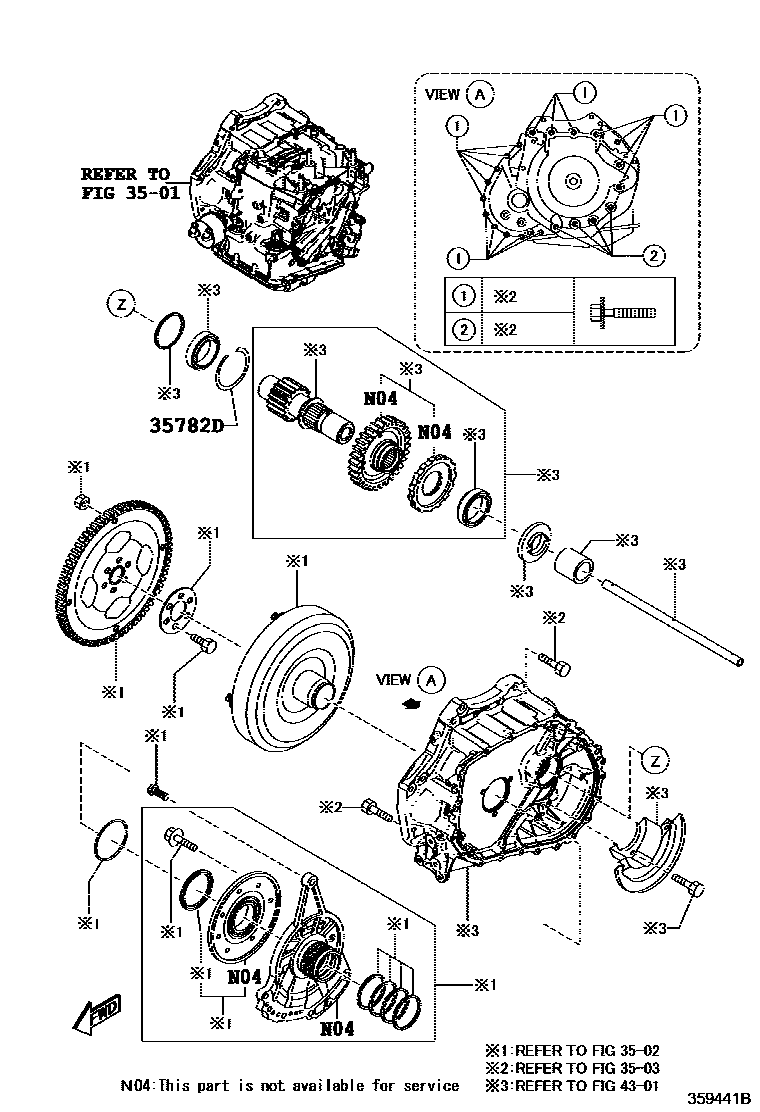

Toyota SCION IA/YARIS R/IA — PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
3501TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
2 parts on this diagram · 5 diagrams in section
PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM) for Toyota SCION IA/YARIS R/IA
This section contains 20 genuine Toyota parts for the PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM) system of the Toyota SCION IA/YARIS R/IA. Key components include: TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM), CENTER SUPPORT & PLANETARY SUN GEAR (ATM), PISTON,1ST & REVERSE BRAKE, CARRIER SUB-ASSY, PLANETARY, GEAR, FR PLANETARY SUN.
