Toyota SCION IA/YARIS R/IA — PARKING BRAKE & CABLE

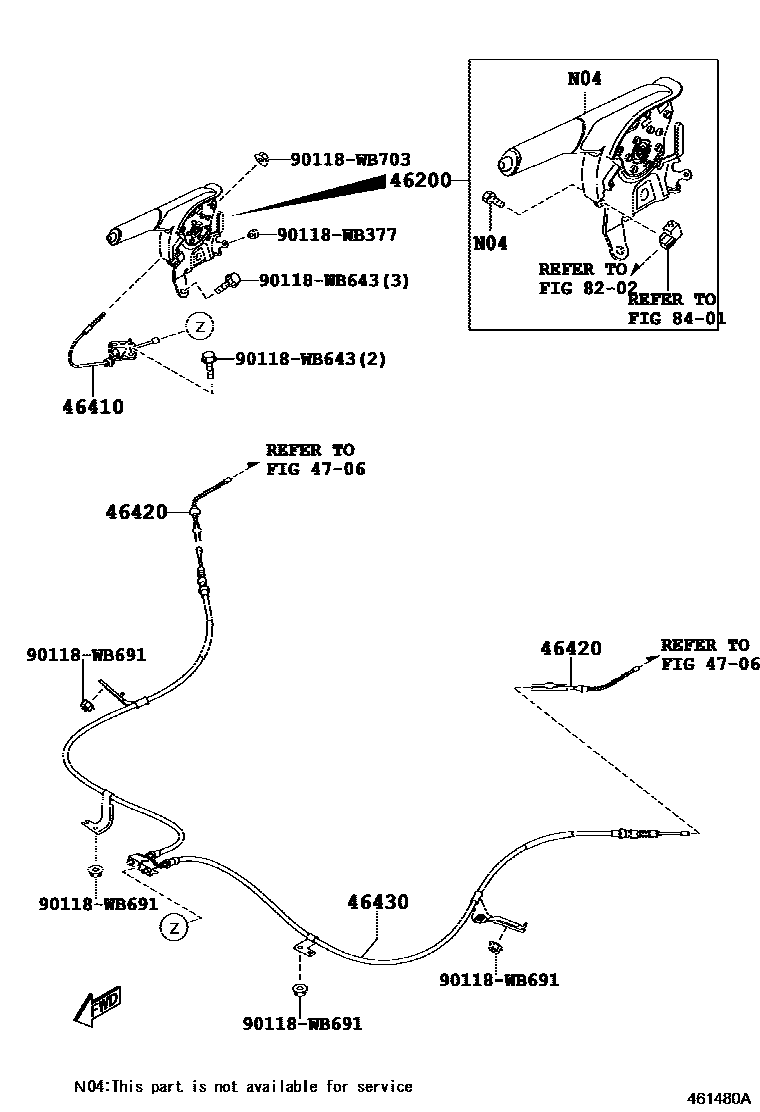

Parts diagram

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46201-WB001i201508-201808

main46201-WB002i201508-201808

main46201-WB003i202011

main46201-WB004i202011

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-WB001i201508-201808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46440-WB001×2i201508-201808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-WB001i201506-201808

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90118WB377

main90118-WB377

90118WB643

main90118-WB643

90118WB691

main90118-WB691

90118WB703

main90118-WB703

11 parts on this diagram · 1 diagram in section

PARKING BRAKE & CABLE for Toyota SCION IA/YARIS R/IA

This section contains 11 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota SCION IA/YARIS R/IA. Key components include: PEDAL ASSY, PARKING BRAKE CONTROL, CABLE ASSY, PARKING BRAKE, NO.1, CABLE ASSY, PARKING BRAKE, NO.2, CABLE ASSY, PARKING BRAKE, NO.3, REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE.
