Toyota SCION IA/YARIS R/IA — OIL FILTER

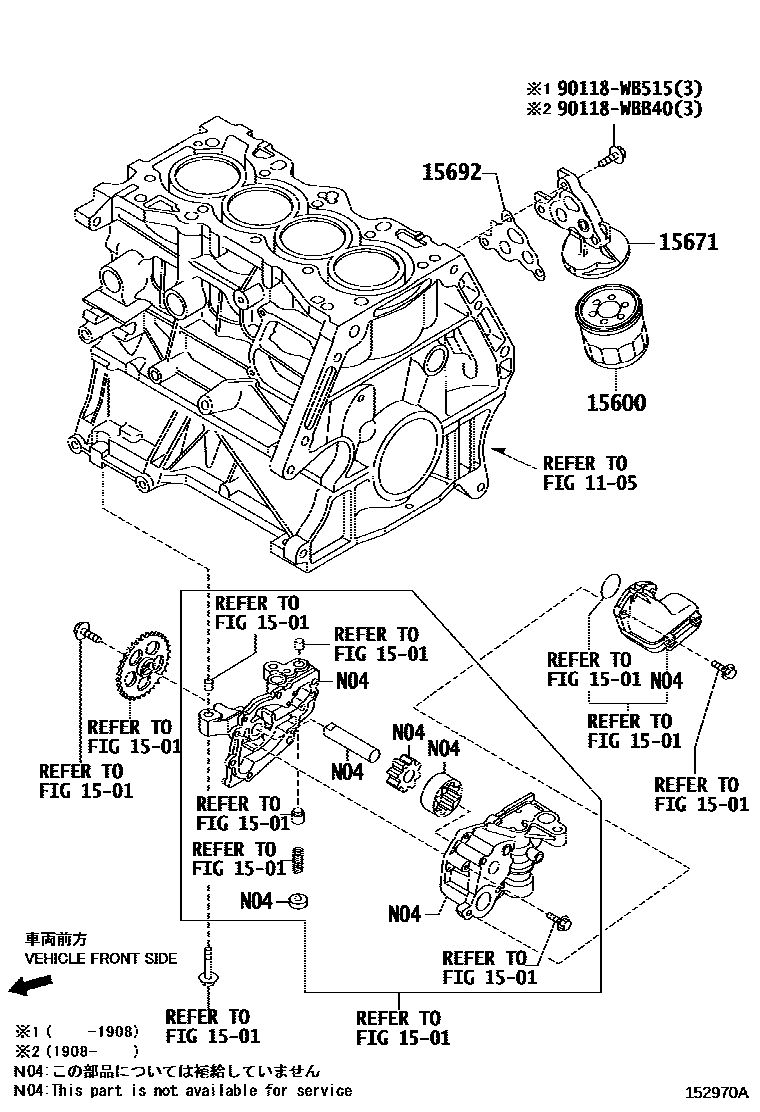

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15600FILTER ASSY, OIL

main90118-WB433i201506-201603

main90118-WBA42i201603

15671BRACKET, OIL FILTER

main15671-WB001i201508-201808

15692GASKET, OIL FILTER BRACKET

main15691-WB001i201508-201808

90118WB515

main90118-WB515

90118WBB40

main90118-WBB40

7 parts on this diagram · 1 diagram in section

OIL FILTER for Toyota SCION IA/YARIS R/IA

This section contains 7 genuine Toyota parts for the OIL FILTER system of the Toyota SCION IA/YARIS R/IA. Key components include: CYLINDER BLOCK, ENGINE OIL PUMP, FILTER ASSY, OIL, BRACKET, OIL FILTER, GASKET, OIL FILTER BRACKET.
