Toyota SCION IA/YARIS R/IA — OIL COOLER & TUBE (ATM)

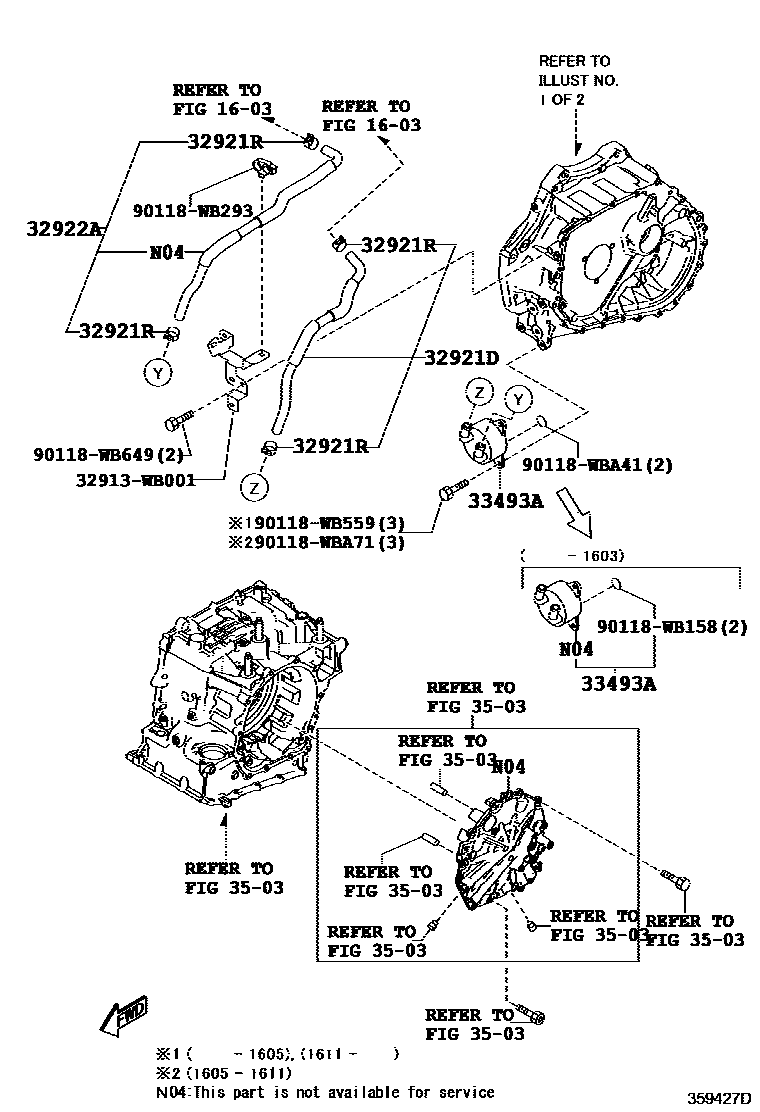

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32921DHOSE(FOR OIL COOLER INLET)

main16264-WB001i201506-201508

main16264-WB002i201508

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90118-WB409×2i201506

NO.2

main90118-WB492×2i201508-201808

NO.1

32922AHOSE(FOR OIL COOLER OUTLET)

main16261-WB002i201506-201508

main16261-WB003i201508-201808

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-WB001i201506-201603

main33493-WB002i201603-201605

main33493-WB003i201605-201611

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

32913WB001BRACKET, OIL COOLER

main32913-WB001

90118WB158

main90118-WB158

90118WB293

main90118-WB293

90118WB559

main90118-WB559

90118WB649

main90118-WB649

90118WBA41

main90118-WBA41

90118WBA71

main90118-WBA71

13 parts on this diagram · 2 diagrams in section

OIL COOLER & TUBE (ATM) for Toyota SCION IA/YARIS R/IA

This section contains 13 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota SCION IA/YARIS R/IA. Key components include: RADIATOR & WATER OUTLET, HOSE(FOR OIL COOLER INLET), CLIP, NO.2(FOR OIL COOLER HOSE), HOSE(FOR OIL COOLER OUTLET), COOLER, TRANSMISSION OIL(ATF WARMER).
