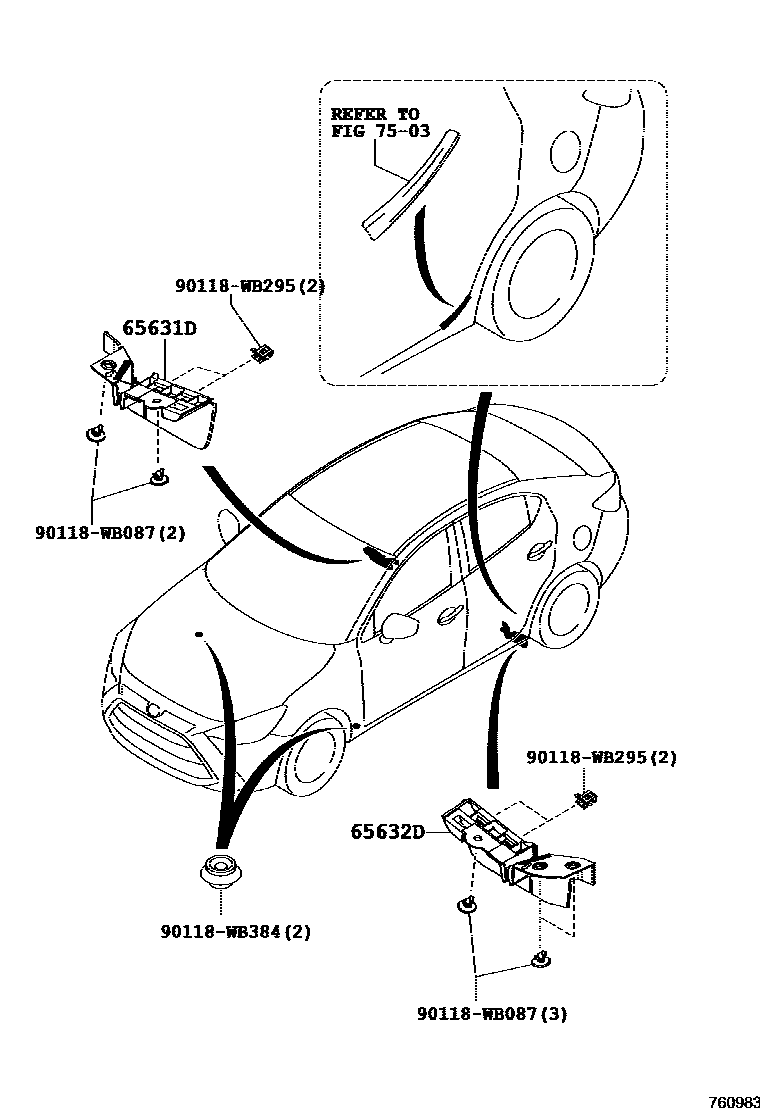

Toyota SCION IA/YARIS R/IA — MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-WB001i201506-201808

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-WB001i201506-201808

7503SIDE MOULDING

→ Go to FIG 75-03

90118WB087

main90118-WB087

90118WB295

main90118-WB295

90118WB384

main90118-WB384

6 parts on this diagram · 5 diagrams in section

MUDGUARD & SPOILER for Toyota SCION IA/YARIS R/IA

This section contains 24 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota SCION IA/YARIS R/IA. Key components include: PLATE, REAR WHEEL HOUSE, FRONT RH, PLATE, REAR WHEEL HOUSE, FRONT LH, SIDE MOULDING, SPOILER SUB-ASSY, REAR, PROTECTOR, REAR SPOILER, NO.1.
