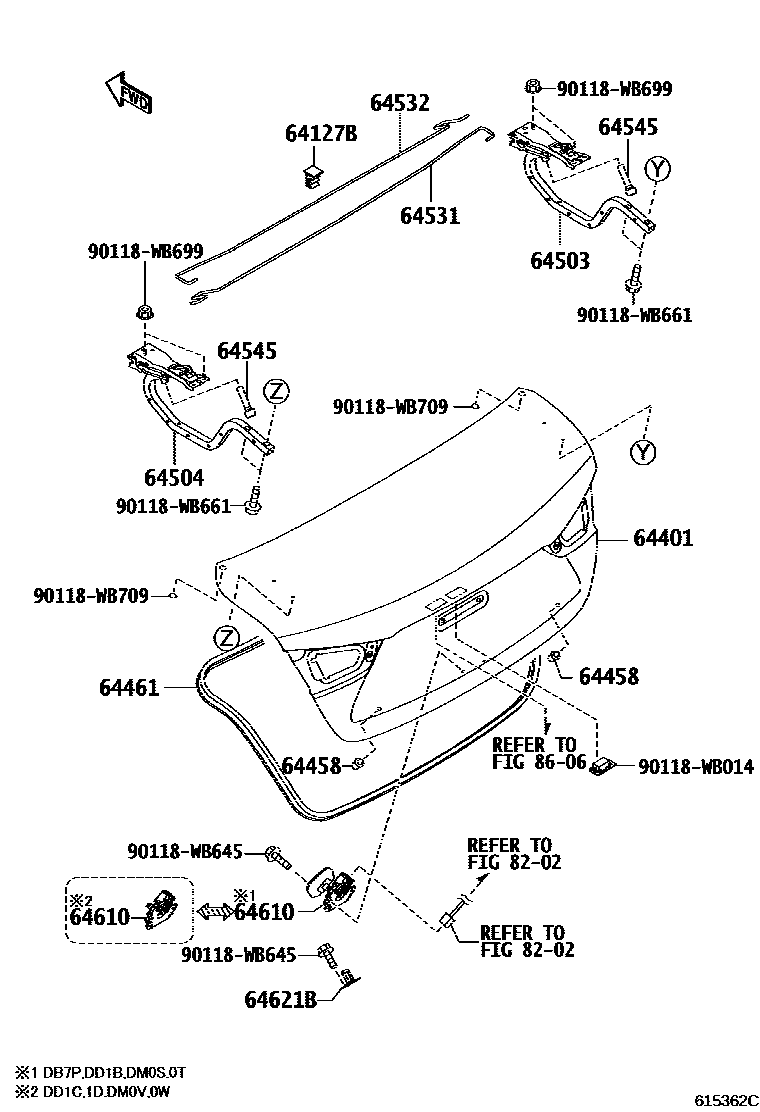

Toyota SCION IA/YARIS R/IA — LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
WITHOUT(R-DOT LABEL)
WITH(R-DOT LABEL)
WITHOUT(R-DOT LABEL)
WITH(R-DOT LABEL)
WITH(R-DOT LABEL)
WITHOUT(R-DOT LABEL)
64458COVER, LUGGAGE DOOR STOPPER CUSHION, LH
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64545CUSHION, LUGGAGE DOOR HINGE
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
8202WIRING & CLAMP
8606CAMERA & REAR MONITOR DISPLAY
90118WB014
main90118-WB014
90118WB645
main90118-WB645
90118WB661
main90118-WB661
90118WB699
main90118-WB699
90118WB709
main90118-WB709
18 parts on this diagram · 4 diagrams in section
LUGGAGE COMPARTMENT DOOR & LOCK for Toyota SCION IA/YARIS R/IA
This section contains 24 genuine Toyota parts for the LUGGAGE COMPARTMENT DOOR & LOCK system of the Toyota SCION IA/YARIS R/IA. Key components include: PARTIAL ENGINE ASSEMBLY, SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR, COVER, LUGGAGE DOOR STOPPER CUSHION, LH, WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR.
