Toyota SCION IA/YARIS R/IA — HEATING & AIR CONDITIONING - WATER PIPING

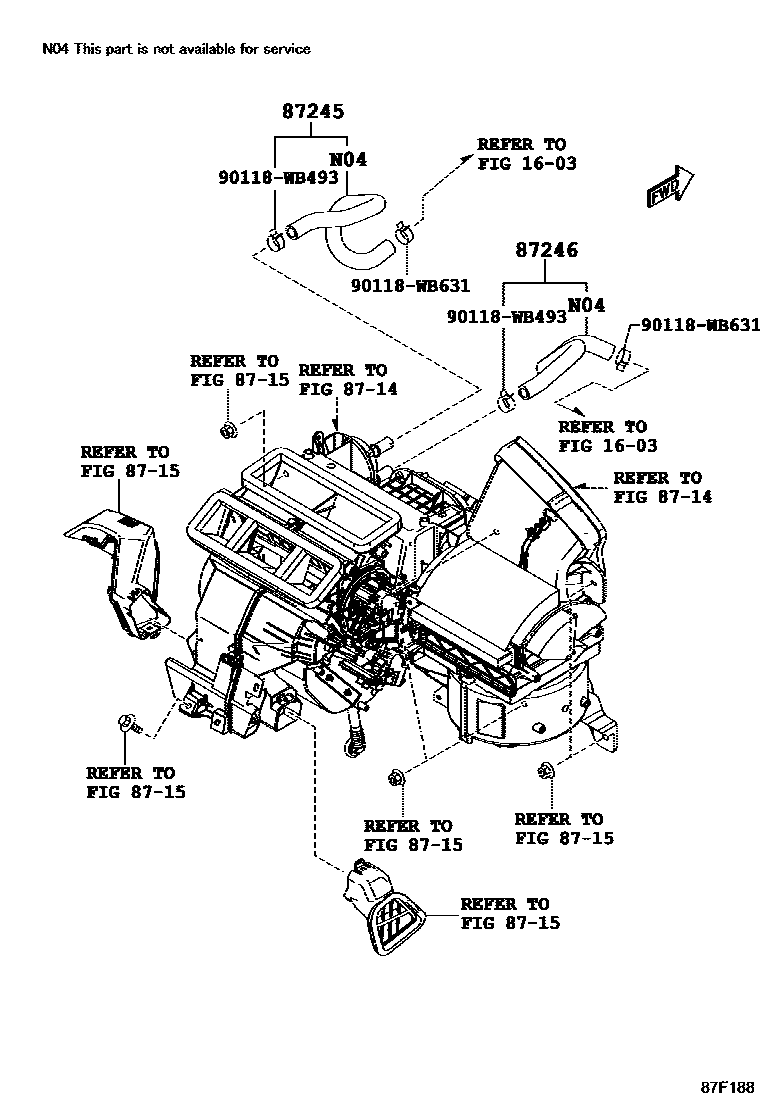

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87245HOSE, HEATER WATER, INLET

main87245-WB003i201508-201908

87246HOSE, HEATER WATER, OUTLET

main87245-WB004i201508-201908

90118WB493

main90118-WB493

90118WB631

main90118-WB631

7 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota SCION IA/YARIS R/IA

This section contains 7 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota SCION IA/YARIS R/IA. Key components include: RADIATOR & WATER OUTLET, HEATING & AIR CONDITIONING - COOLER UNIT, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT, HOSE, HEATER WATER, INLET, HOSE, HEATER WATER, OUTLET.
