Toyota SCION IA/YARIS R/IA — HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88706PIPE SUB-ASSY, LIQUID
88707PIPE SUB-ASSY, SUCTION
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88719ASENSOR, AIR CONDITIONER PRESSURE
88473WB001CAP, COOLER RECEIVER TANK
main88473-WB001
88688WB001BRACKET, COOLER DIAPHRAGM
main88688-WB001
88688WB002BRACKET, COOLER DIAPHRAGM
main88688-WB002
88718WB002PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-WB002
88718WB003PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-WB003
90118WB107
main90118-WB107
90118WB359
main90118-WB359
90118WB362
main90118-WB362
90118WB502
main90118-WB502
90118WB650
main90118-WB650
90118WB689
main90118-WB689
90118WB707
main90118-WB707
90118WB743
main90118-WB743
90118WB763
main90118-WB763
90118WB896
main90118-WB896

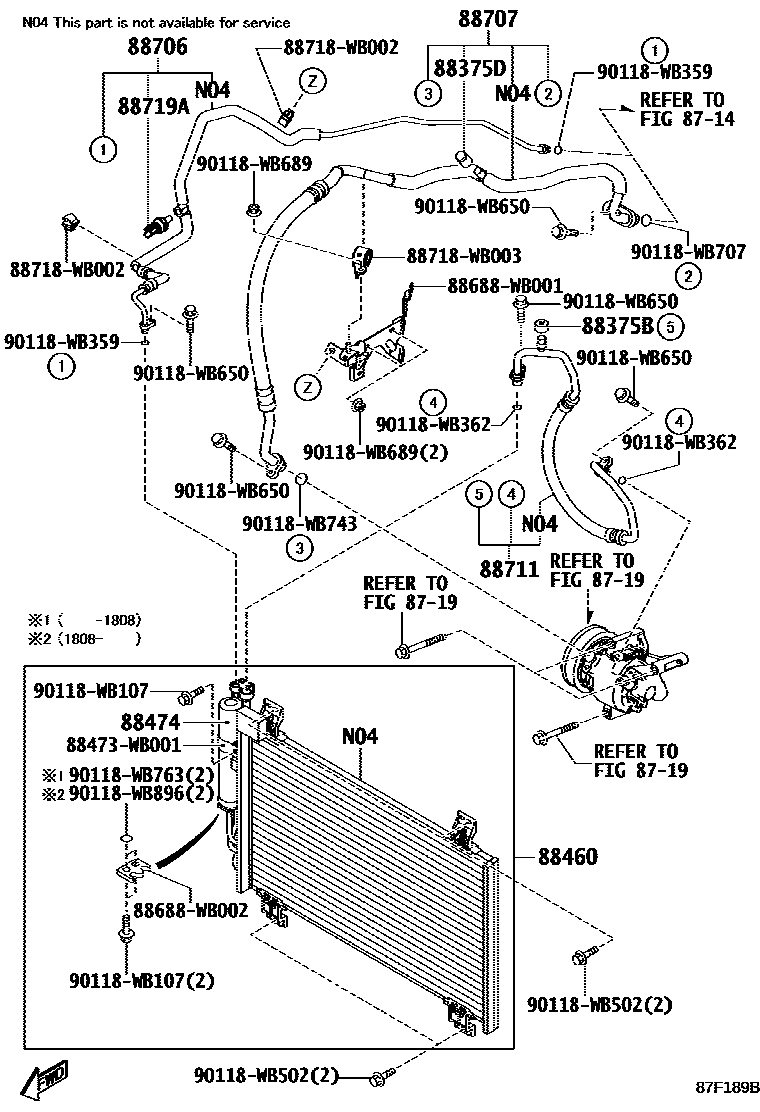

25 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - COOLER PIPING for Toyota SCION IA/YARIS R/IA
This section contains 25 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota SCION IA/YARIS R/IA. Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, HEATING & AIR CONDITIONING - COMPRESSOR, CAP, SERVICE VALVE, NO.1, CAP, SERVICE VALVE, NO.2, CONDENSER ASSY, COOLER.
