Toyota SCION IA/YARIS R/IA — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

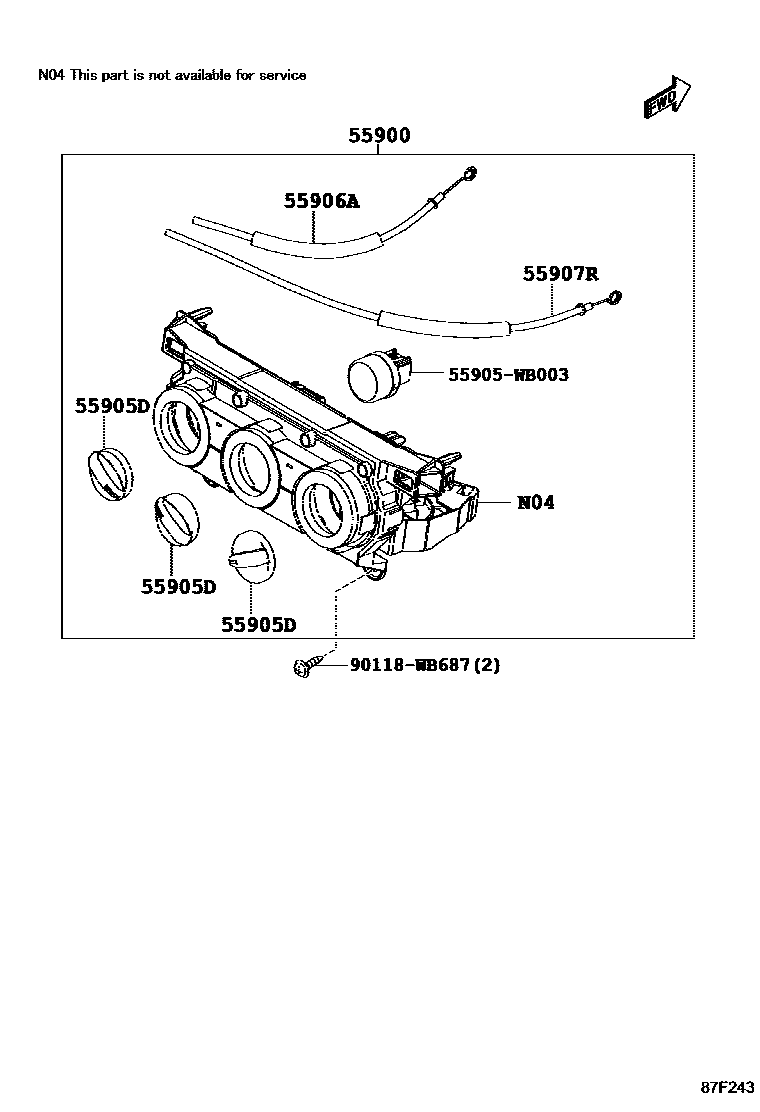

Parts diagram

55900CONTROL ASSY, AIR CONDITIONER

main55936-WB001i201506-201701

main55936-WB002i201508-201701

main55936-WB006i201701-201808

main55936-WB007i201701-201808

main55936-WB012i201808-201901

main55936-WB013i201808-201812

main55936-WB015i201808-201812

main55936-WB019i201812

main55936-WB020i201812

main55936-WB021i201901-201905

main55936-WB022i201905-201908

55905DKNOB SUB-ASSY, CONTROL

main55905-WB001×3i201808

main55905-WB002×3i201506-201808

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-WB001i201508-201908

55907RCABLE SUB-ASSY, TEMPERATURE CONTROL

main55907-WB001i201508-201908

55905WB003CABLE SUB-ASSY, DEFROST CONTROL

main55905-WB003

90118WB687

main90118-WB687

6 parts on this diagram · 7 diagrams in section

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT for Toyota SCION IA/YARIS R/IA

This section contains 28 genuine Toyota parts for the HEATING & AIR CONDITIONING - CONTROL & AIR DUCT system of the Toyota SCION IA/YARIS R/IA. Key components include: RADIATOR & WATER OUTLET, FRONT FENDER APRON & DASH PANEL, INSTRUMENT PANEL & GLOVE COMPARTMENT, DUCT ASSY, HEATER TO REGISTER, CONTROL ASSY, AIR CONDITIONER.
