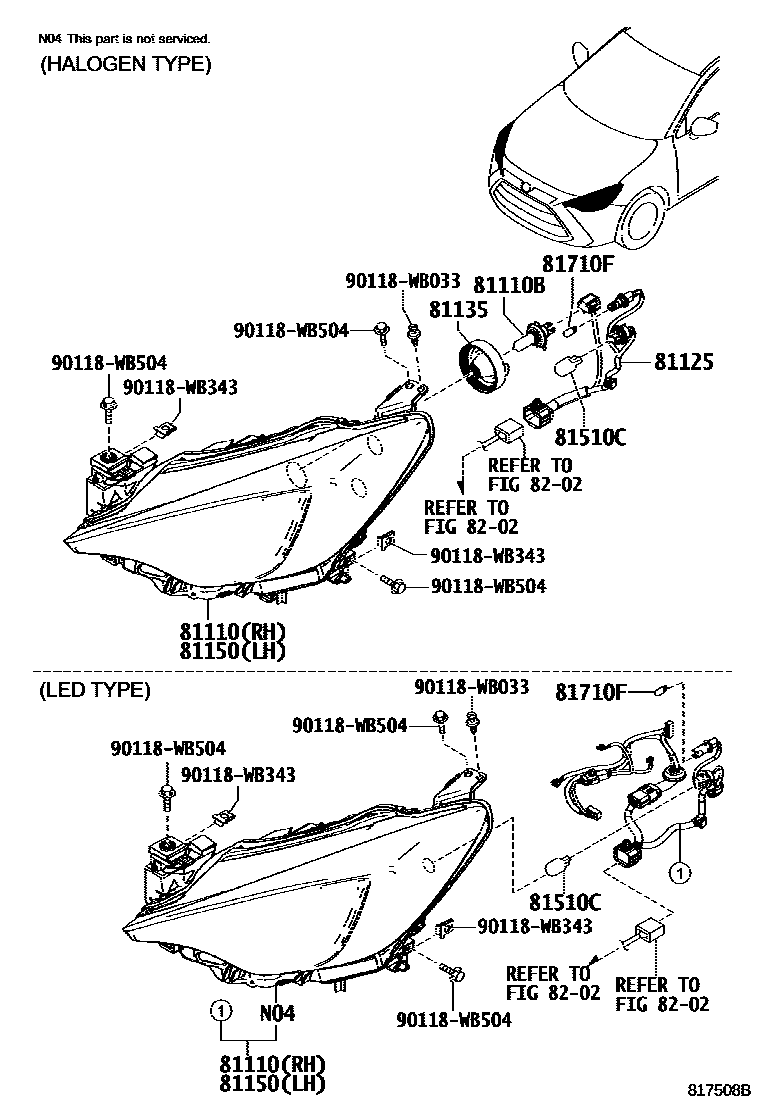

Toyota SCION IA/YARIS R/IA — HEADLAMP

81110HEADLAMP ASSY, RH

main81130-WB001i201506-201808

main81145-WB003i201808

81110BBULB(FOR HEADLAMP, NO.1)

main90118-WB810×2i201506-201808

12V 60/55W

81125CORD, HEADLAMP

main81125-WB001×2i201506-201808

81135UNIT ASSY, HEADLAMP, RH

main81135-WB001×2i201506-201808

81150HEADLAMP ASSY, LH

main81170-WB001i201506-201808

main81185-WB003i201808

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90118-WB744×2i201506-201808

12V 28/8W

81710FBULB, FRONT SIDE MAKER LAMP

main90118-WB809×2i201506-201808

8202WIRING & CLAMP

→ Go to FIG 82-02

90118WB033

main90118-WB033

90118WB343

main90118-WB343

90118WB504

main90118-WB504

11 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota SCION IA/YARIS R/IA

This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota SCION IA/YARIS R/IA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), CORD, HEADLAMP, UNIT ASSY, HEADLAMP, RH, HEADLAMP ASSY, LH.
