Toyota SCION IA/YARIS R/IA — FRONT STEERING GEAR & LINK

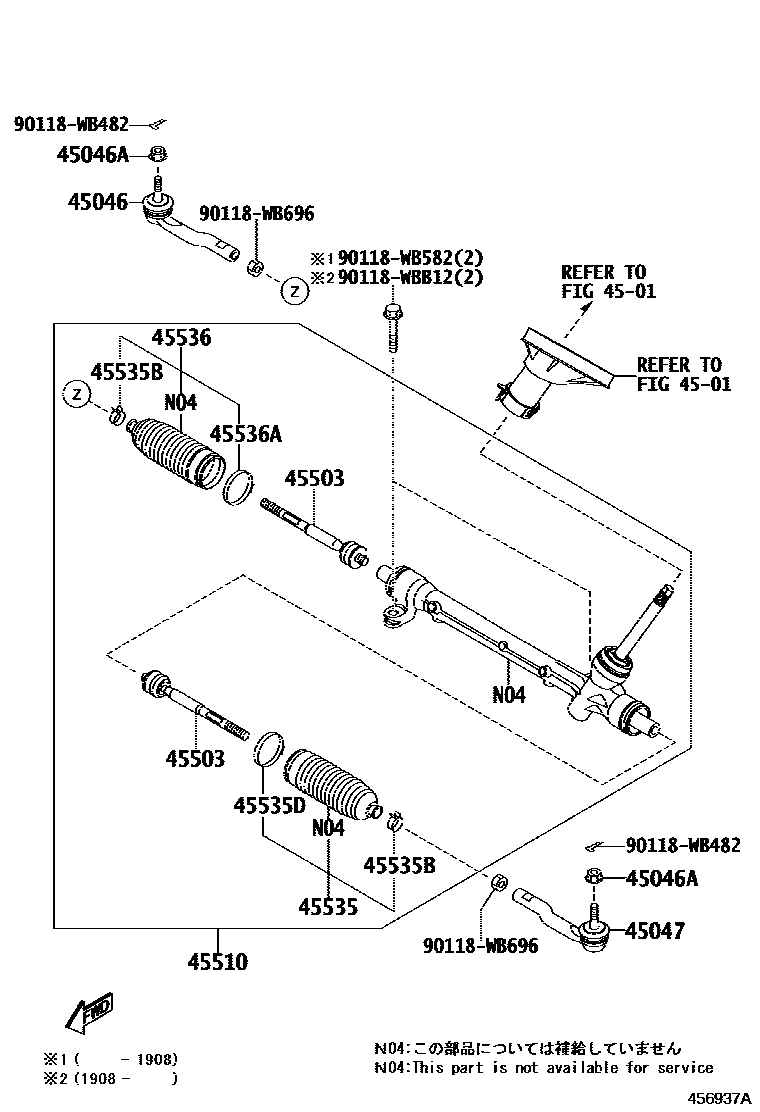

Parts diagram

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45046-WB001i201506-201711

main45046-WB002i201711

45046ANUT, CASTLE(FOR TIE ROD END)

main90118-WB602×2i201508-201908

45047END SUB-ASSY, TIE ROD, LH

main45047-WB001i201506-201711

main45047-WB002i201711

45503END SUB-ASSY, STEERING RACK

main45503-WB001×2i201508-201808

45510GEAR ASSY, STEERING

main45510-WB001i201506-201707

main45510-WB002i201506-201706

main45510-WB005i201707-201908

main45510-WB006i201706-201908

45535BOOT, STEERING RACK, NO.1

main45535-WB001i201508-201808

45535BCLIP(FOR STEERING RACK BOOT)

main90118-WB098×2i201508-201808

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90118-WB092i201508-201808

45536BOOT, STEERING RACK, NO.2

main45535-WB001i201508-201808

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90118-WB092×2i201508-201808

90118WB482

main90118-WB482

90118WB582

main90118-WB582

90118WB696

main90118-WB696

90118WBB12

main90118-WBB12

15 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota SCION IA/YARIS R/IA

This section contains 15 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota SCION IA/YARIS R/IA. Key components include: STEERING COLUMN & SHAFT, END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, END SUB-ASSY, STEERING RACK.
