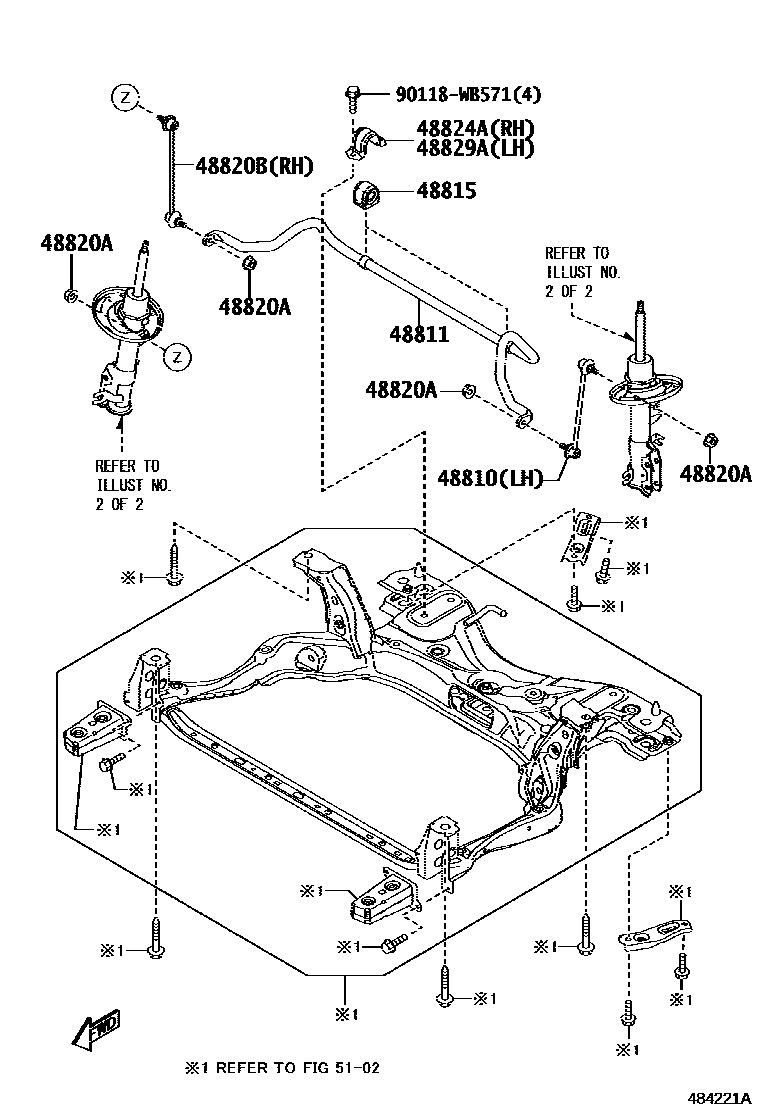

Toyota SCION IA/YARIS R/IA — FRONT SPRING & SHOCK ABSORBER

48810LINK ASSY, FRONT STABILIZER, LH

main48820-WB001i201506-201805

main48820-WB002i201805

48811BAR, STABILIZER, FRONT

main48811-WB001i201506-201808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-WB001×2i201506-201607

main48815-WB002×2i201607

48820ANUT(FOR FRONT STABILIZER LINK)

main90118-WB599×4i201508-201908

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-WB001i201506-201805

main48820-WB002i201805

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-WB001i201506-201808

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-WB001i201506-201808

90118WB571

main90118-WB571

8 parts on this diagram · 2 diagrams in section

FRONT SPRING & SHOCK ABSORBER for Toyota SCION IA/YARIS R/IA

This section contains 29 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota SCION IA/YARIS R/IA. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH.
