Toyota SCION IA/YARIS R/IA — FRONT DRIVE SHAFT

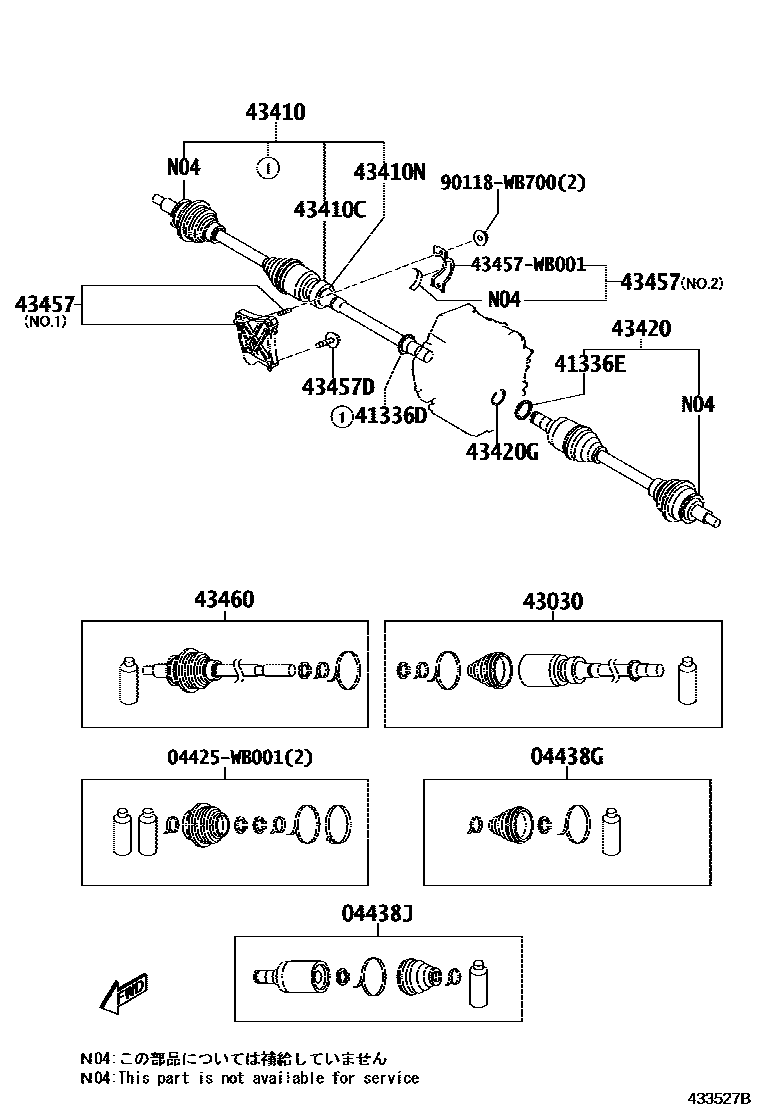

Parts diagram
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
main04437-WB001×2i201508-201701
main04437-WB002×2i201506-201703
main04437-WB003×2i201701
main04437-WB004×2i201703
04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
main43403-WB001i201506-201701
main43403-WB002i201506-201703
main43403-WB003i201701
main43403-WB004i201703
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
main41336-WB001i201508-201808
41336ECOVER, FRONT DRIVE SHAFT DUST, LH
main41336-WB001i201508-201808
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
main43030-WB001i201508-201701
main43030-WB002i201508-201703
main43030-WB003i201701
main43030-WB004i201703-201908
main43030-WB005i201908
43410SHAFT ASSY, FRONT DRIVE, RH
main43410-WB001i201506-201511
main43410-WB002i201508-201602
main43410-WB003i201511-201701
main43410-WB004i201602-201703
main43410-WB005i201701
main43410-WB006i201703-201908
main43410-WB007i201908
43410CBEARING (FOR FRONT DRIVE SHAFT)
main90118-WB297i201508-201808
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
main90118-WB671i201506
43420SHAFT ASSY, FRONT DRIVE, LH
main43420-WB001i201506-201511
main43420-WB002i201506-201602
main43420-WB003i201511-201701
main43420-WB004i201602-201703
main43420-WB005i201701
main43420-WB006i201703-201908
main43420-WB007i201908
43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
main43425-WB001i201508-201808
43457BRACKET, DRIVE SHAFT BEARING
main43044-WB001i201508-201808
NO.2
main43496-WB001i201508-201808
NO.1
main43496-WB002i201901
NO.1
43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
main90118-WB586i201508-201908
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
main43460-WB001i201506-201701
main43460-WB002i201508-201703
main43460-WB003i201701
main43460-WB004i201703-201908
main43460-WB005i201908
04425WB001
main04425-WB001
43457WB001BRACKET, DRIVE SHAFT BEARING
main43457-WB001
90118WB700
main90118-WB700

16 parts on this diagram · 6 diagrams in section

FRONT DRIVE SHAFT for Toyota SCION IA/YARIS R/IA

This section contains 22 genuine Toyota parts for the FRONT DRIVE SHAFT system of the Toyota SCION IA/YARIS R/IA. Key components include: BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH, BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH, COVER, FRONT DRIVE SHAFT DUST, RH, COVER, FRONT DRIVE SHAFT DUST, LH, JOINT ASSY, FRONT DRIVE INBOARD, RH.
