Toyota SCION IA/YARIS R/IA — FRONT AXLE HUB

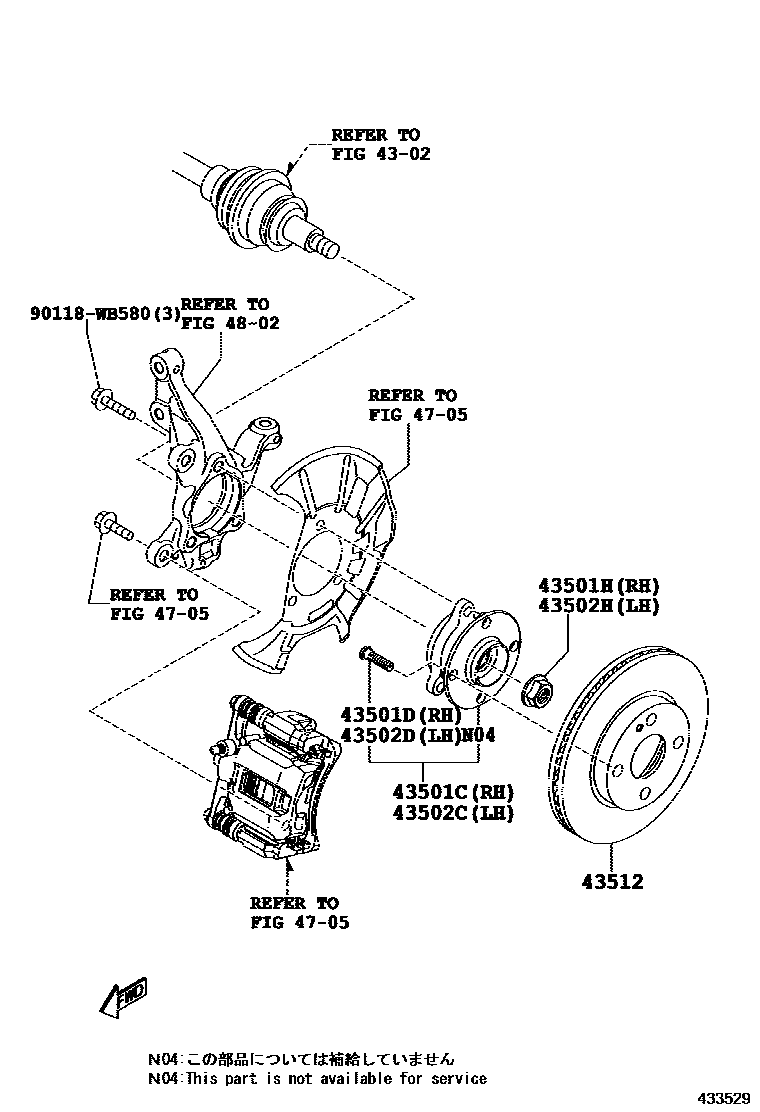

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-WB001i201506-201508

main43502-WB003i201508

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90118-WB076×4i201508

main90118-WB772×4i201506-201508

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90118-WB851i201508-201808

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-WB001i201506-201508

main43502-WB003i201508

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90118-WB076×4i201508

main90118-WB772×4i201506-201508

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90118-WB851i201508-201808

43512DISC, FRONT

main43512-WB001×2i201508-201808

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

90118WB580

main90118-WB580

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SCION IA/YARIS R/IA

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SCION IA/YARIS R/IA. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
