Toyota SCION IA/YARIS R/IA — FOG LAMP

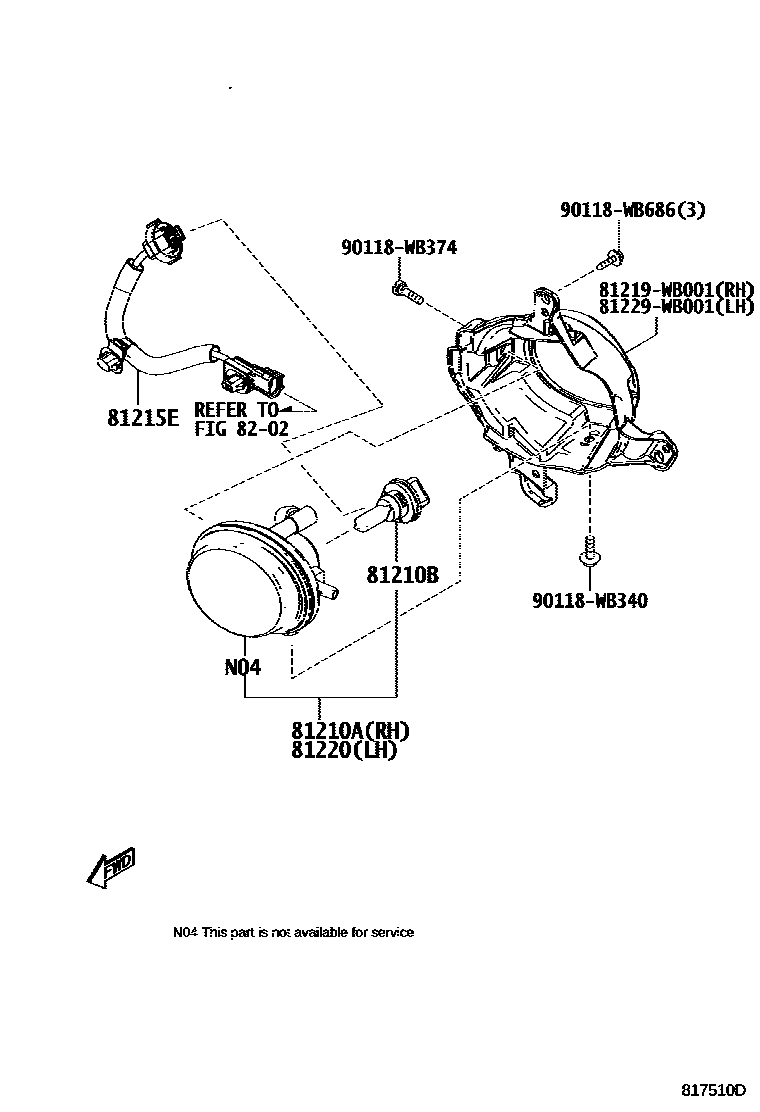

Parts diagram

81210ALAMP ASSY, FOG, RH

main81210-WB001i201506-201808

81210BBULB, FOG LAMP

main90118-WB778×2i201506-201808

12V 55W

81215ECORD, FOG LAMP

main90118-WB818×2i201506-201808

81220LAMP ASSY, FOG, LH

main81220-WB001i201506-201808

8202WIRING & CLAMP

→ Go to FIG 82-02

81219WB001BOLT, FOG LAMP

main81219-WB001

81229WB001BRACKET, FOG LAMP

main81229-WB001

90118WB340

main90118-WB340

90118WB374

main90118-WB374

90118WB686

main90118-WB686

10 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota SCION IA/YARIS R/IA

This section contains 12 genuine Toyota parts for the FOG LAMP system of the Toyota SCION IA/YARIS R/IA. Key components include: LAMP ASSY, FOG, RH, BULB, FOG LAMP, CORD, FOG LAMP, LAMP ASSY, FOG, LH, WIRING & CLAMP.
