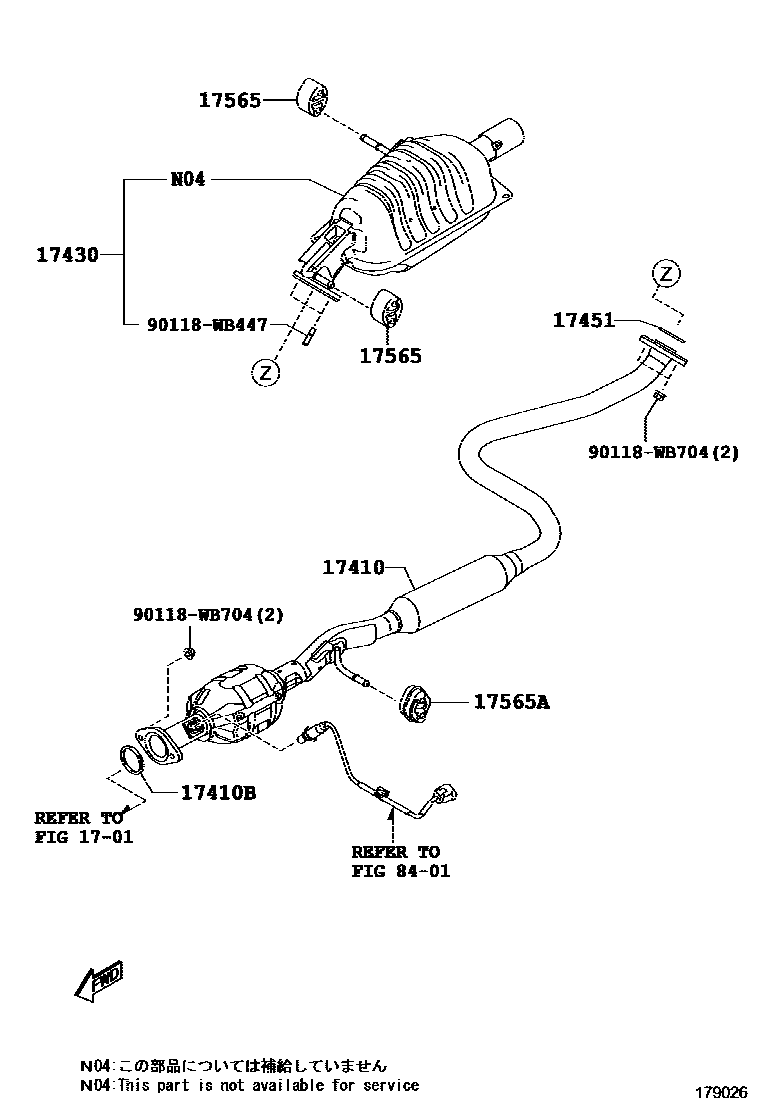

Toyota SCION IA/YARIS R/IA — EXHAUST PIPE
1701MANIFOLD
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
8401SWITCH & RELAY & COMPUTER
90118WB447
main90118-WB447
90118WB704
main90118-WB704
10 parts on this diagram · 2 diagrams in section
EXHAUST PIPE for Toyota SCION IA/YARIS R/IA
This section contains 10 genuine Toyota parts for the EXHAUST PIPE system of the Toyota SCION IA/YARIS R/IA. Key components include: MANIFOLD, PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, TAIL.
