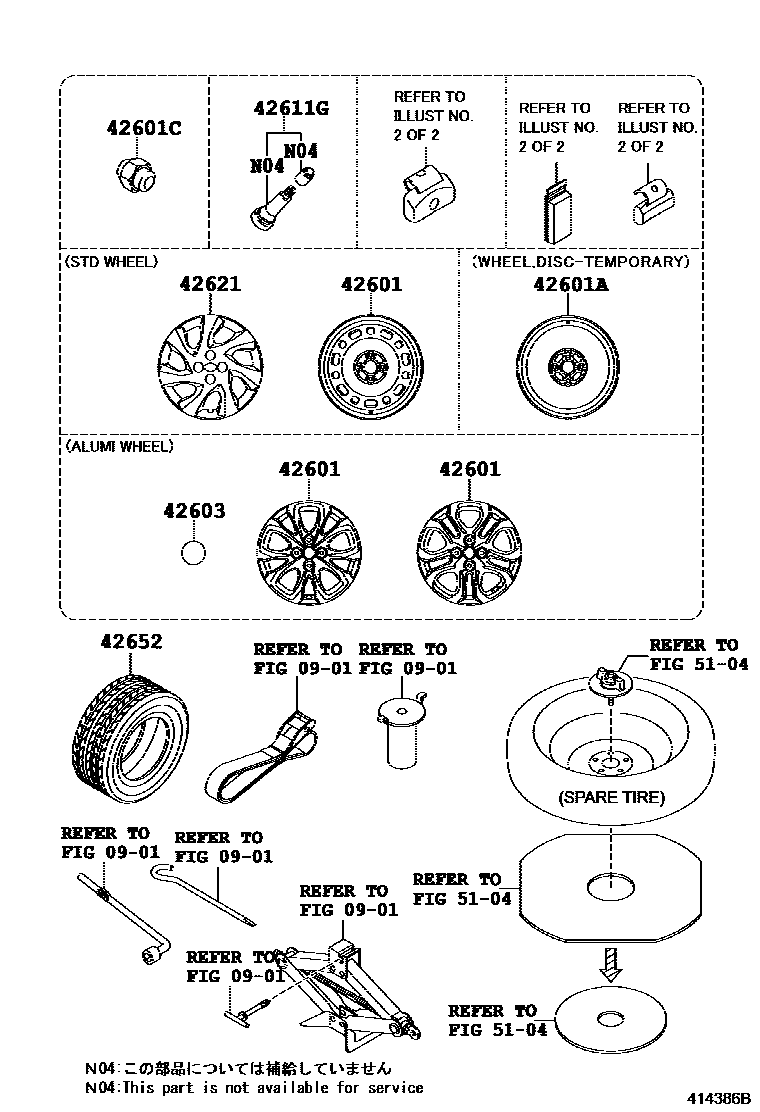

Toyota SCION IA/YARIS R/IA — DISC WHEEL & WHEEL CAP

0901STANDARD TOOL

→ Go to FIG 09-01

42601WHEEL, DISC

main42611-WB001×4i201506-201808

15X5.5J

main42611-WB002×4i201508-201608

16X5.5J,ALUMI

main42611-WB003×4i201506

16X5.5J

main42611-WB007×4i201808

15X5.5J

main42611-WB008×4i201808-201908

15X5.5J,ALUMI

main42611-WB009×4i201808

16X5.5J,ALUMI

42601AWHEEL, DISC (FOR SPARE)

main42611-WB005i201508

14X5J

main42611-WB006i201506

15X4T

42601CNUT, HUB (FOR AXLE)

main90118-WB031×16i201907

main90118-WBB32×16i201808-201809

main90118-WBB56×16i201809-201907

main90118-WBB57×16i201809-201907

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-WB001×4i201608

*ALU

main42603-WB002×4i201506-201608

*ALU

42611GVALVE (FOR TUBELESS TIRE)

main90118-WB779×4i201508-201808

42621CAP, WHEEL

main42602-WB001×4i201506

main42602-WB002×4i201808

42652TIRE

main42652-WB001i201508

185/60R16,FOR MEXICO

main42652-WB002×4i201508

185/60R16

main42652-WB003×4i201506

P185/60R16

main42652-WB004×4i201508

185/65R15

main42652-WB005×4i201506

P185/65R15

main42652-WB006i201506

T125/70D15

5104SPARE WHEEL CARRIER

→ Go to FIG 51-04

9 parts on this diagram · 3 diagrams in section

DISC WHEEL & WHEEL CAP for Toyota SCION IA/YARIS R/IA

This section contains 58 genuine Toyota parts for the DISC WHEEL & WHEEL CAP system of the Toyota SCION IA/YARIS R/IA. Key components include: STANDARD TOOL, WHEEL, DISC, WHEEL, DISC (FOR SPARE), NUT, HUB (FOR AXLE), ORNAMENT SUB-ASSY, WHEEL HUB.
