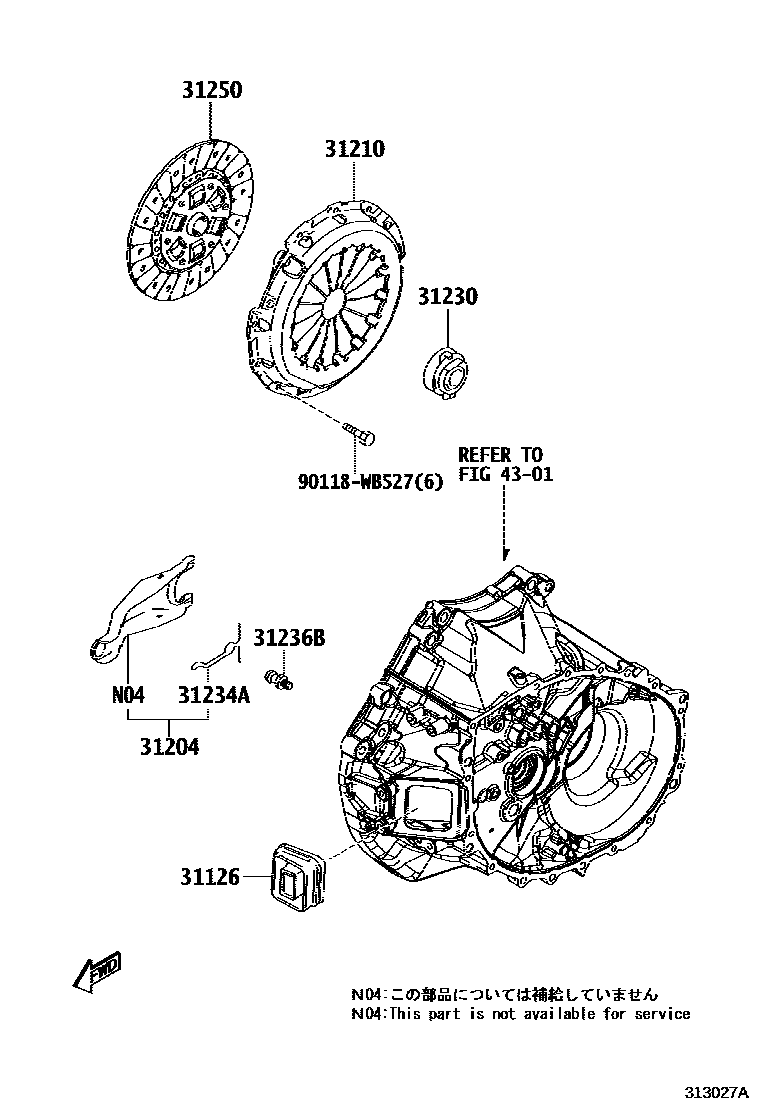

Toyota SCION IA/YARIS R/IA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-WB001i201508-201808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-WB001i201508-201808

31210COVER ASSY, CLUTCH

main31210-WB001i201508-201808

31230BEARING ASSY, CLUTCH RELEASE

main31230-WB001i201508-201808

31234ASPRING, RELEASE FORK SUPPORT

main31234-WB001i201508-201808

31236BSUPPORT, RELEASE FORK

main31236-WB001i201508-201808

31250DISC ASSY, CLUTCH

main31250-WB001i201508-201808

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

90118WB527

main90118-WB527

9 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota SCION IA/YARIS R/IA

This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota SCION IA/YARIS R/IA. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, SPRING, RELEASE FORK SUPPORT.
