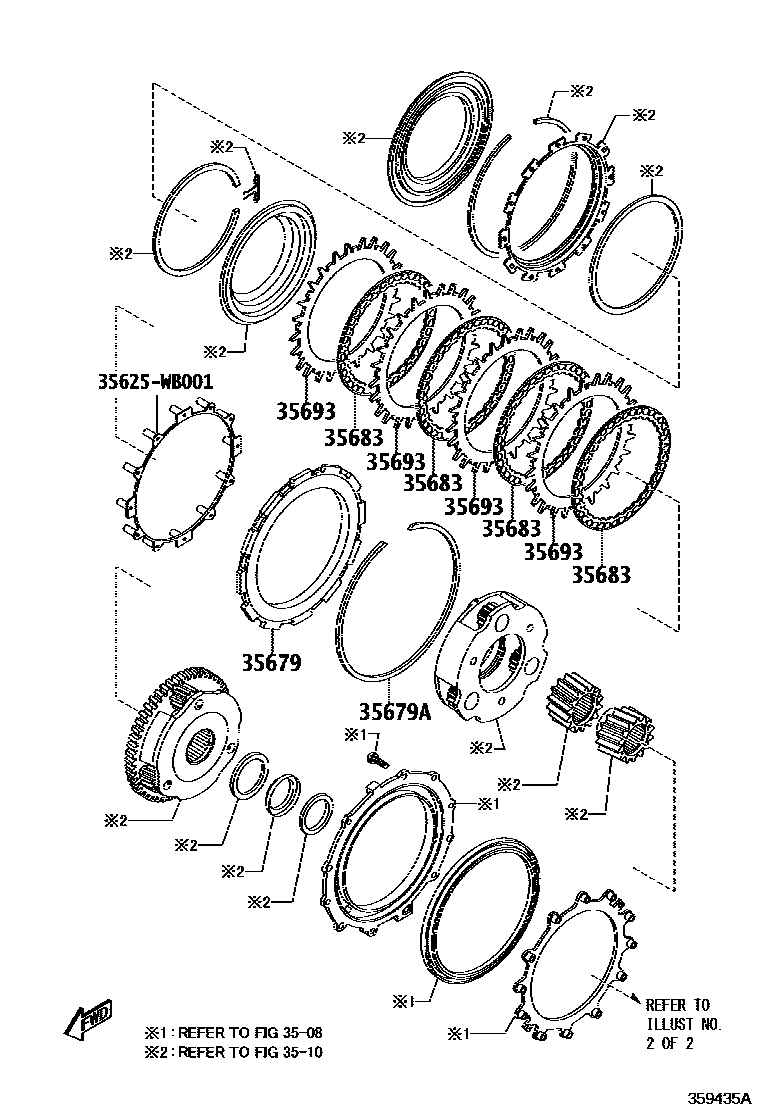

Toyota SCION IA/YARIS R/IA — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-WB001i201506-201605

main35679-WB003i201605-201611

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90118-WB281i201508-201808

T=1.8

main90118-WB282i201508-201808

T=1.9

main90118-WB283i201506

T=2.0

main90118-WB284i201508-201808

T=2.1

main90118-WB285i201506

T=2.2

main90118-WB286i201508-201808

T=2.3

main90118-WB287i201508-201808

T=2.4

main90118-WB288i201506

T=2.5

main90118-WB289i201508-201808

T=2.6

main90118-WB290i201508-201808

T=2.7

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-WB001×4i201508-201808

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-WB001×4i201508-201808

35625WB001

main35625-WB001

5 parts on this diagram · 2 diagrams in section

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) for Toyota SCION IA/YARIS R/IA

This section contains 16 genuine Toyota parts for the BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) system of the Toyota SCION IA/YARIS R/IA. Key components include: PLATE, BRAKE CUSHION, SPRING, BRAKE PISTON RETURN, FLANGE, BRAKE(FOR 2ND BRAKE), FLANGE, BRAKE, NO.1(FOR 2ND BRAKE), FLANGE, BRAKE(FOR 1ST & REVERSE).
