Toyota SCION IA/YARIS R/IA — BACK DOOR PANEL & GLASS

64780APANEL ASSY, BACK DOOR TRIM

main64780-WB001i201908

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-WB001i201908

67005PANEL SUB-ASSY, BACK DOOR

main67005-WB001i201908

WITHOUT(R-DOT LABEL)

main67005-WB002i201908

WITH(R-DOT LABEL)

67881AWEATHERSTRIP, BACK DOOR

main67881-WB001i201908

74811DHANDLE, DOOR PULL

main74811-WB001i201908

90118WB350

main90118-WB350

90118WB353

main90118-WB353

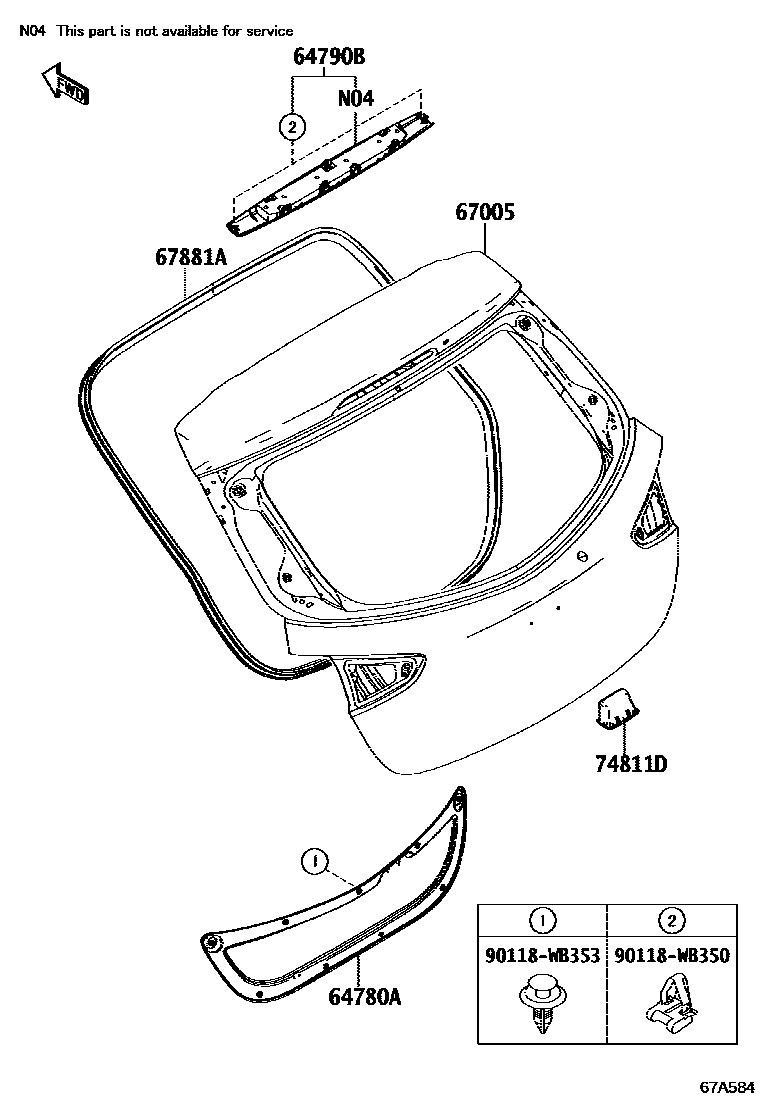

7 parts on this diagram · 2 diagrams in section

BACK DOOR PANEL & GLASS for Toyota SCION IA/YARIS R/IA

This section contains 13 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota SCION IA/YARIS R/IA. Key components include: COWL PANEL & WINDSHIELD GLASS, PANEL ASSY, BACK DOOR TRIM, PANEL ASSY, BACK DOOR TRIM, UPPER, PANEL SUB-ASSY, BACK DOOR, WEATHERSTRIP, BACK DOOR.
