Toyota SCION IA/YARIS R/IA — BACK DOOR LOCK & HANDLE

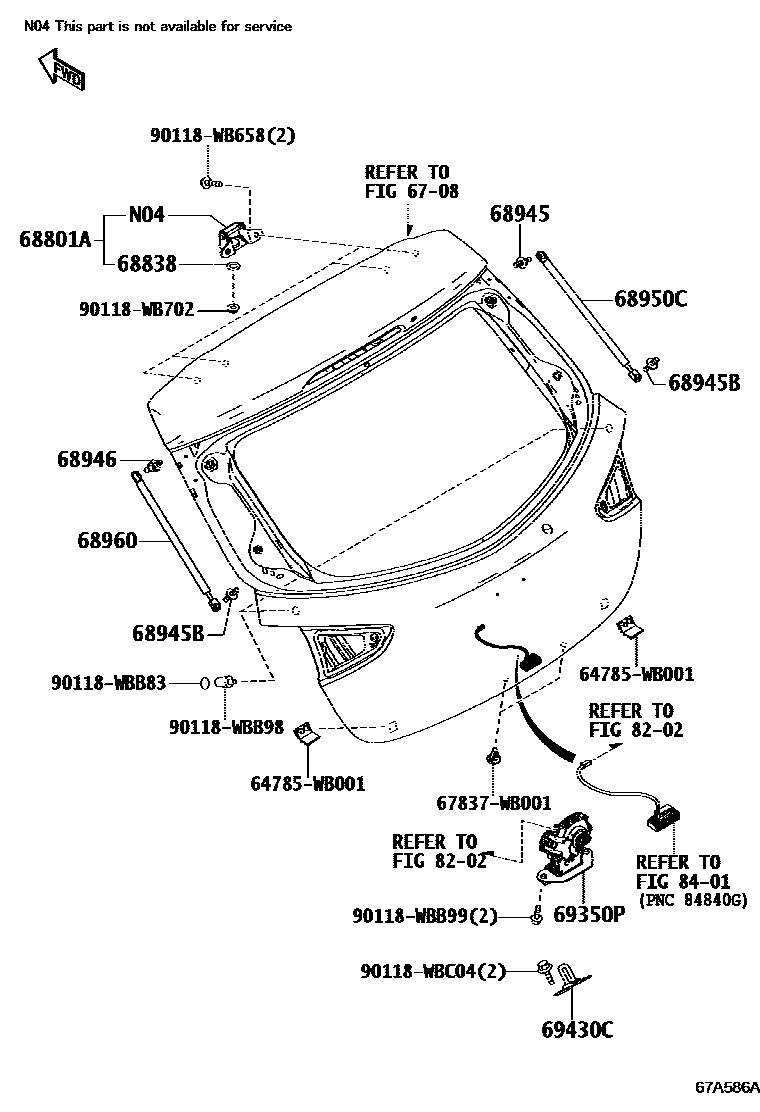

Parts diagram

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68820-WB001×2i201908

68838PAD, BACK DOOR HINGE, NO.1

main68838-WB002×2i201908

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68946-WB001i201908

68945BBOLT, BACK DOOR DAMPER STAY BRACKET

main68946-WB001×2i201908

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-WB001i201908

68950CSTAY ASSY, BACK DOOR, RH

main68950-WB002i201908

68960STAY ASSY, BACK DOOR, LH

main68960-WB002i201908

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-WB001i201908

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-WB001i201908

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

64785WB001GARNISH, DECK SIDE, REAR RH

main64785-WB001

67837WB001PROTECTOR, FRONT DOOR SERVICE HOLE COVER

main67837-WB001

90118WB658

main90118-WB658

90118WB702

main90118-WB702

90118WBB83

main90118-WBB83

90118WBB98

main90118-WBB98

90118WBB99

main90118-WBB99

90118WBC04

main90118-WBC04

20 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota SCION IA/YARIS R/IA

This section contains 20 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota SCION IA/YARIS R/IA. Key components include: BACK DOOR PANEL & GLASS, HINGE SUB-ASSY, BACK DOOR, UPPER, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BOLT, BACK DOOR DAMPER STAY BRACKET.
