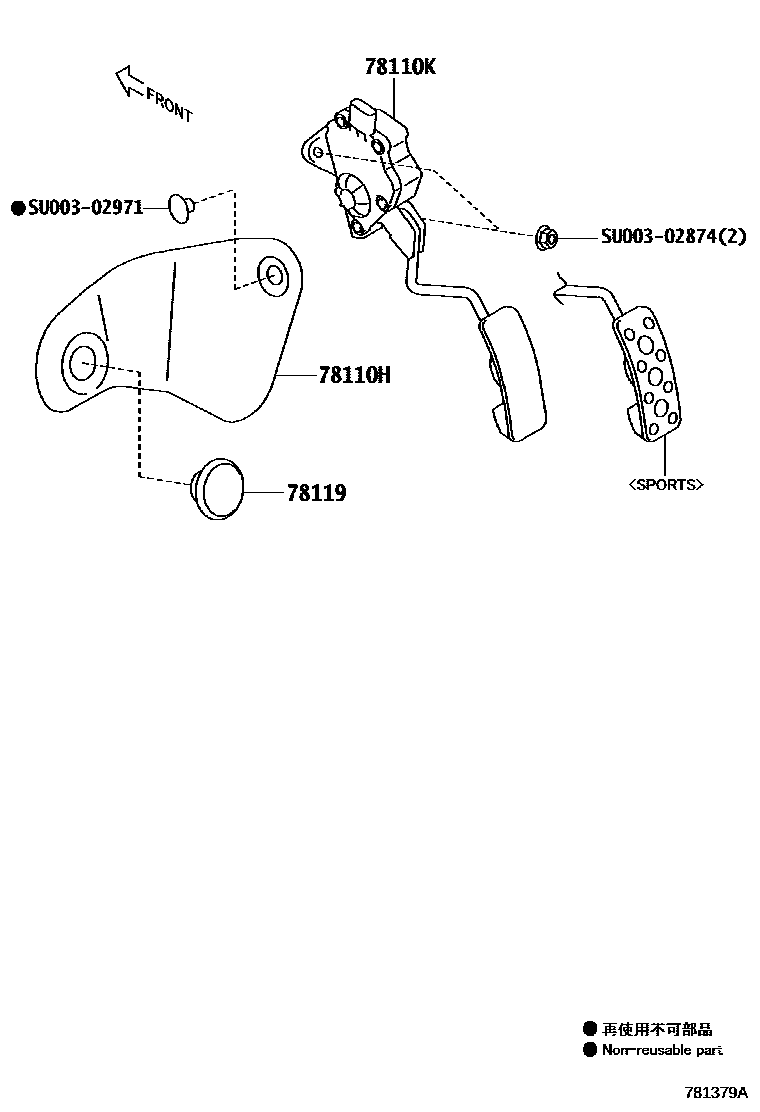

Toyota SCION FR-S/86 — ACCELERATOR LINK

78110HCOVER (FOR ACCELERATOR PEDAL ROD)

mainSU00300986i201504-201606

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

mainSU00300953i201307-201404

OPTION CODE=CV; OPTION CODE=CW; OPTION CODE=FV; OPTION CODE=FW; OPTION CODE=GD; OPTION CODE=GG; OPTION CODE=NT; OPTION CODE=NZ; OPTION CODE=QV; OPTION CODE=QW; OPTION CODE=RV; OPTION CODE=RW; OPTION CODE=SC; OPTION CODE=SG

mainSU00305903i201504-201606

OPTION CODE=DL; OPTION CODE=DS; OPTION CODE=EK; OPTION CODE=ER; OPTION CODE=JL; OPTION CODE=JS; OPTION CODE=KF; OPTION CODE=KM; OPTION CODE=KP; OPTION CODE=KS; OPTION CODE=LF; OPTION CODE=LM; OPTION CODE=LP; OPTION CODE=LS

mainSU00300952i201203-201308

OPTION CODE=DV; OPTION CODE=DW; OPTION CODE=HV; OPTION CODE=HW; OPTION CODE=MV; OPTION CODE=MW; OPTION CODE=XV; OPTION CODE=XW

mainSU00305902i201504-201606

OPTION CODE=KA; OPTION CODE=KB; OPTION CODE=KD; OPTION CODE=KE; OPTION CODE=LA; OPTION CODE=LB; OPTION CODE=LD; OPTION CODE=LE

78119STOPPER, ACCELERATOR PEDAL ROD

mainSU00300976i201203-201308

SU00302874

mainSU003-02874

SU00302971

mainSU003-02971

5 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota SCION FR-S/86

This section contains 5 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota SCION FR-S/86. Key components include: COVER (FOR ACCELERATOR PEDAL ROD), ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), STOPPER, ACCELERATOR PEDAL ROD.
