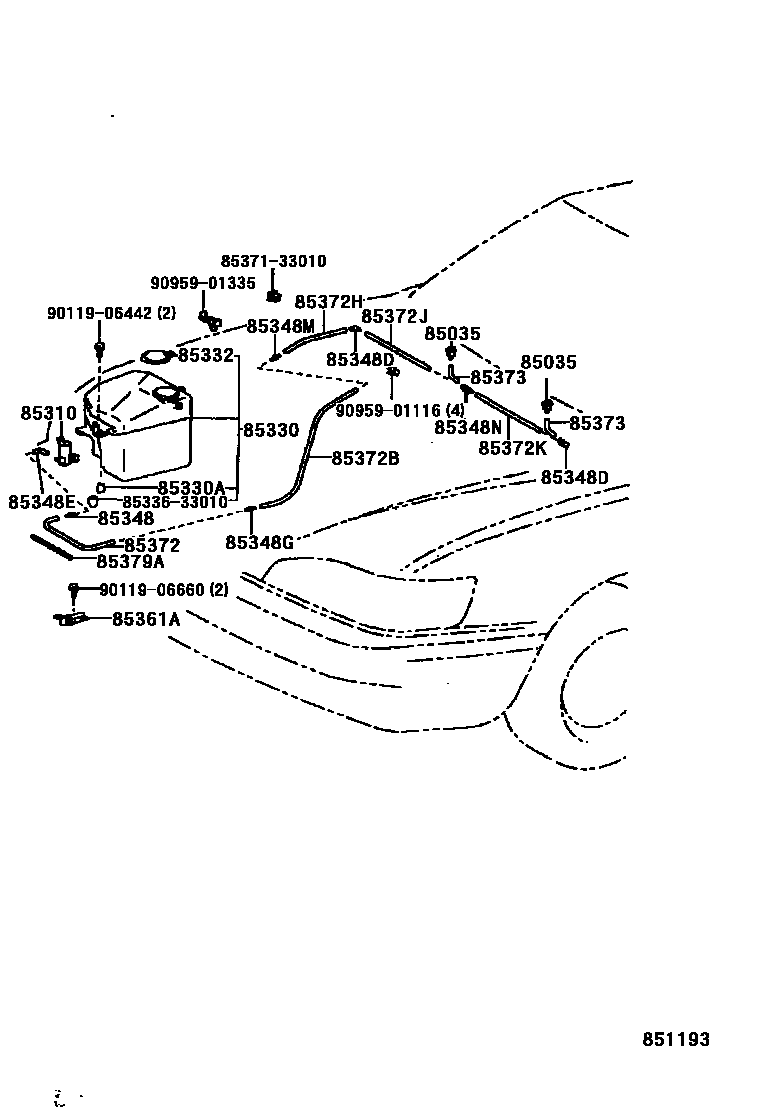

Toyota SCEPTER (WG,CP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12060×2i199408-199607

main85385-33030×2i199207-199408

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20160i199207-199309

main85310-20210i199509-199607

main85330-06020i199509-199607

DELCO

main85330-06030i199509-199607

DELCO

main85330-12280i199509-199607

85330JAR ASSY, WINDSHIELD WASHER

main85315-06030i199509-199607

DELCO

main85315-06040i199509-199607

DELCO

main85315-33070i199207-199309

main85315-33120i199309-199509

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199207-199607

85332CAP, WINDSHIELD WASHER JAR

main85316-06020i199509-199607

DELCO

main85316-22190i199209-199309

main85316-33010i199207-199209

main85316-33120i199309-199509

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-33110i199207-199309

main85349-89122i199310-199408

main85355-20200i199309-199408

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85376-10250i199207-199309

RH,NIPONDENSO

main85377-06010i199408-199607

LH,DELCO

main85377-06030i199403-199408

main85377-33030i199309-199408

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481i199408-199607

main85375-33040i199310-199408

main90099-33729i199207-199309

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85334-22480i199207-199309

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85334-22470i199207-199309

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85378-06010i199309-199607

DELCO

main85378-33030i199309-199607

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-33010i199207-199309

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075i199207-199309

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33192i199207-199309

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199207-199309

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85374-06010i199309-199607

main90099-33080i199309-199607

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main85374-06040i199309-199607

main90099-33080i199207-199309

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i199207-199607

85379ASPRING, WINDSHIELD WASHER HOSE

main85379-33030i199207-199309

8533633010SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85336-33010

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906442

main90119-06442

9011906660

main90119-06660

9095901116

main90959-01116

9095901335

main90959-01335

25 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota SCEPTER (WG,CP)

This section contains 28 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SCEPTER (WG,CP). Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
