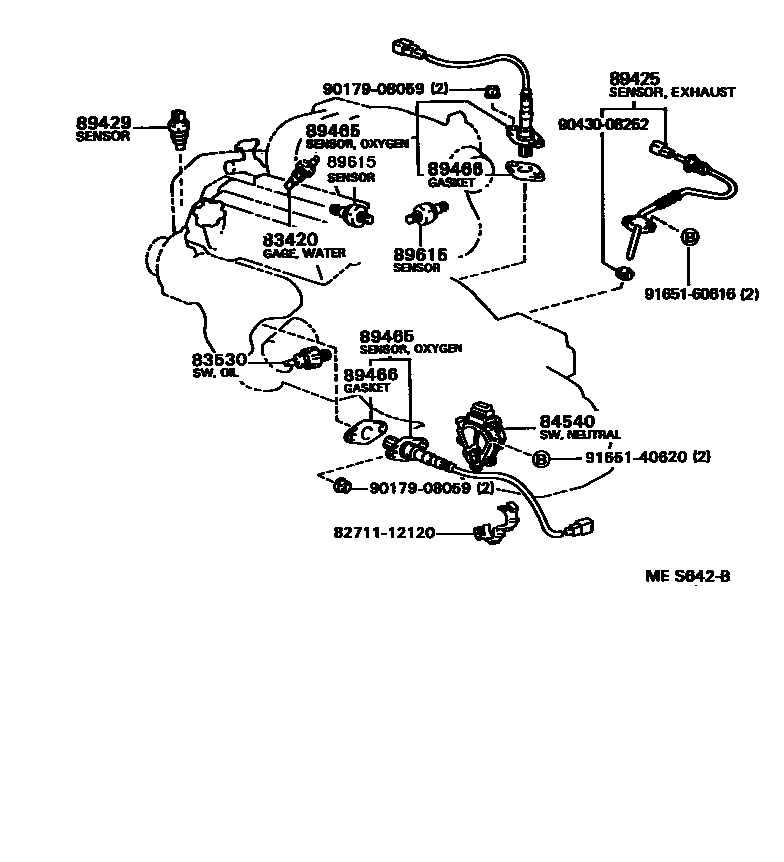

Toyota SCEPTER (WG,CP) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1INSTRUMENT PANEL SWITCH 0005 1COWL RH 0006 1COWL LH 0007 1COMBINATION SWITCH 0008 1ROOF,FRONT DOOR & SEAT 0009 1FLOOR,REAR & BACK DOOR 0010 1FLOOR,REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVCV15199501-199607

main83420-16030iVCV15199301-199501

main83420-16040iSXV15199212-199607

main83420-20030iSXV15199212-199408

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iSXV15199208-199408

main83530-30080iVCV15199207-199208

sub83530-60040

main83530-30090iSXV15199212-199408

sub83530-60020

84540SWITCH ASSY, NEUTRAL START

main84540-16040iSXV15199212-199309

main84540-20200iVCV15199309-199607

main84540-20220iSXV15199309-199607

main84540-32090iVCV15199207-199309

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-39365iSXV15,VCV15199207-199607

89429SENSOR, OIL TEMPERATURE

main89429-33010iVCV15199207-199607

89465SENSOR, OXYGEN

main89465-39405iVCV15199207-199408

main89465-39505iSXV15199305-199607

main89465-39595iSXV15199212-199305

89466GASKET, OXYGEN SENSOR

main89466-20020iSXV15199212-199607

89615SENSOR, KNOCK CONTROL

main89615-20030iSXV15199212-199607

sub89615-32040

main89615-33020×2iVCV15199207-199607

sub89615-32030

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9017908059

main90179-08059

9043008252

main90430-08252

9165140620

main91651-40620

9165160616

main91651-60616

13 parts on this diagram · 10 diagrams in section
