Toyota SCEPTER (WG,CP) — MIRROR

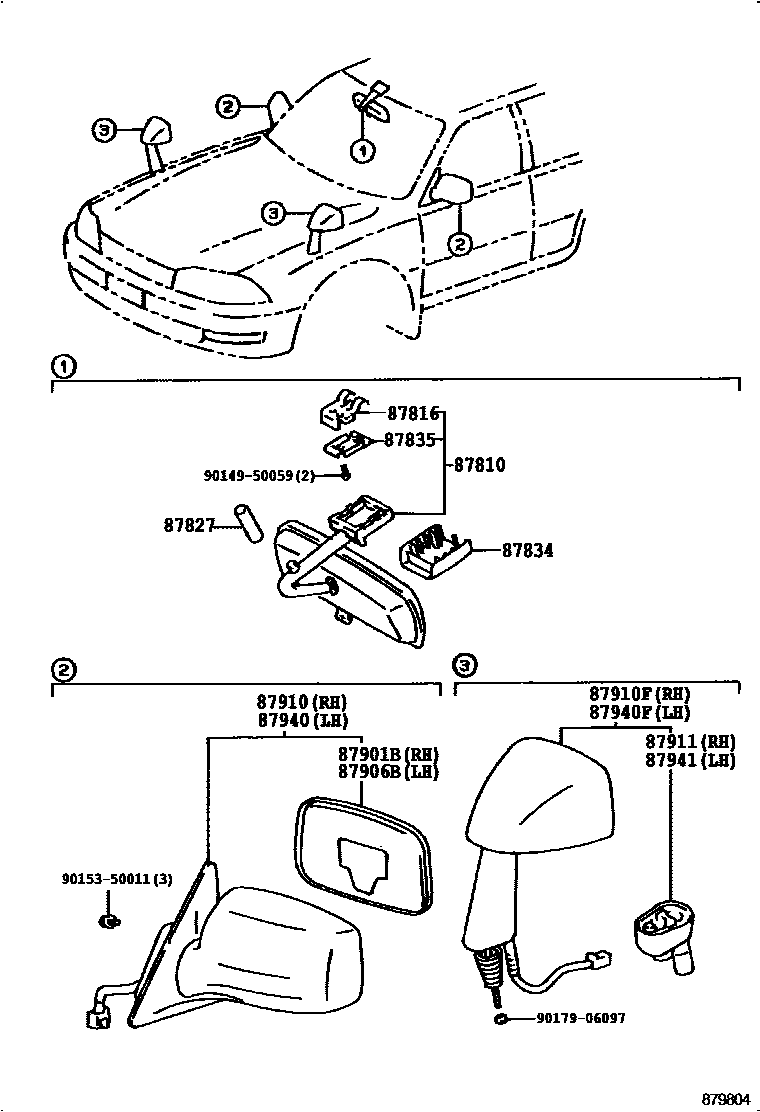

87810MIRROR ASSY, INNER REAR VIEW
MED. GRAY,TRIM1#
OAK,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=49
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LIGHT GRAY,TRIM1#
LT.OAK,TRIM4#
87835PROTECTOR, INNER MIRROR SPRING
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER SILVER ME.,1A0
SUPER RED 3,3J6
DARK WINE RED MICA,3K2
RED MM.,3K4
SU.RED 3,3J6
MAGENTA MC.,3L3
BEIGE MM,4J1
BEIGE ME.,4M9
DARK BLUE MICA,8J4
DK.BLUE MM.,8K0
SUPER SILVER ME.,1A0
SUPER RED 3,3J6
DK.WINE RED MICA,3K2
RED MM.,3K4
BEIGE MICA ME.,4J1
BEIGE ME.,4M9
DK.BLUE MICA,8J4
DK.BLUE MM.,8K0
87940MIRROR ASSY, OUTER REAR VIEW, LH
BLUISH SILVER ME.,1A0
BLUISH SILVER ME.,1A0
SUPER RED 3,3J6
DARK WINE RED MICA,3K2
RED MM.,3K4
SU.RED 3,3J6
MAGENTA MC.,3L3
BEIGE MM,4J1
BEIGE ME.,4M9
DARK BLUE MICA,8J4
DK.BLUE MM.,8K0
DK.BLUE M.M.,8K0
BLUISH SILVER ME.,1A0
SUPER RED 3,3J6
DK.WINE RED MICA,3K2
RED MM.,3K4
BEIGE MICA ME.,4J1
DK.BLUE MICA,8J4
DK.BLUE MM.,8K0
9014950059
main90149-50059
9015350011
main90153-50011
9017906097
main90179-06097
12 parts on this diagram · 1 diagram in section
MIRROR for Toyota SCEPTER (WG,CP)
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota SCEPTER (WG,CP). Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, PROTECTOR, INNER MIRROR SPRING.
