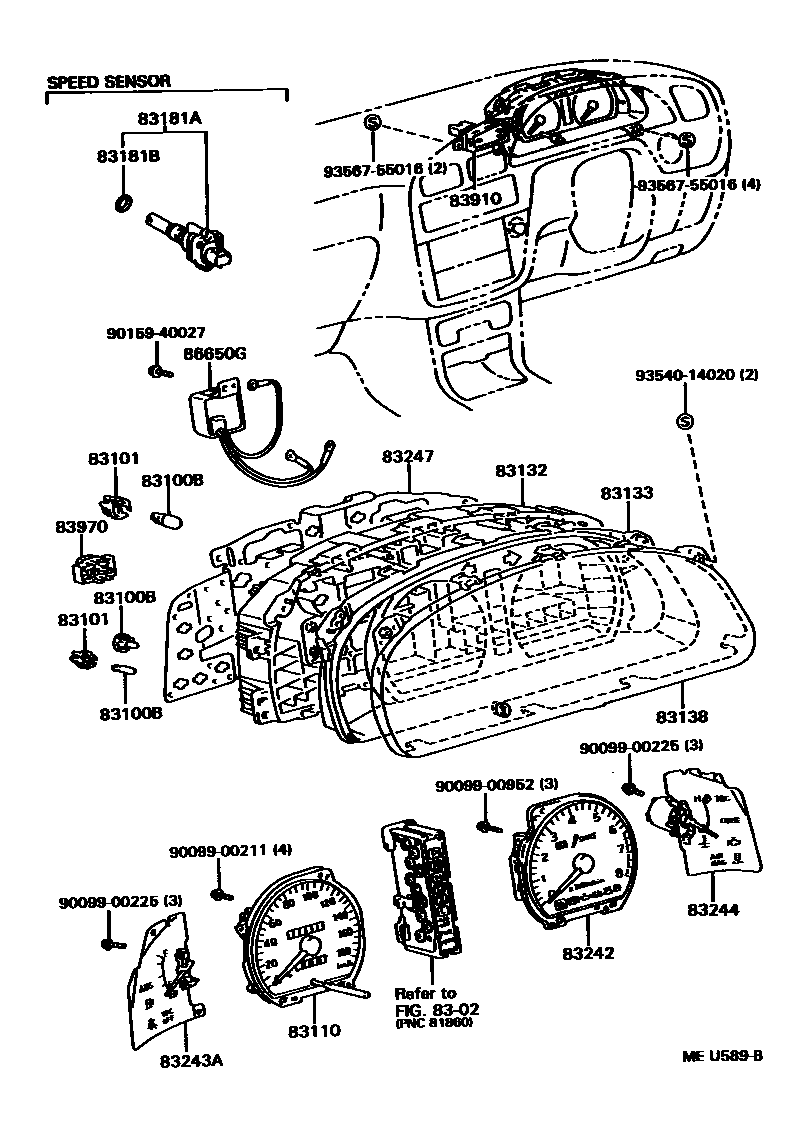

Toyota SCEPTER (WG,CP) — METER
8302INDICATOR
83100BBULB, COMBINATION METER, NO.1
83101SOCKET SUB-ASSY, COMBINATION METER BULB
14V 3.78W
OD=11.3 BLACK
OD=12.2 BLUE
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83181ASENSOR, SPEEDOMETER
83181BRING, O (FOR SPEEDOMETER SENSOR)
83242TACHOMETER ASSY, ENGINE
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
83970BUZZER ASSY, REVERSE WARNING
86650GBUZZER ASSY
9009900211
main90099-00211
9009900225
main90099-00225
9009900952
main90099-00952
9015940027
main90159-40027
9354014020
main93540-14020
9356755016
main93567-55016
22 parts on this diagram · 2 diagrams in section
METER for Toyota SCEPTER (WG,CP)
This section contains 29 genuine Toyota parts for the METER system of the Toyota SCEPTER (WG,CP). Key components include: INDICATOR, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER.
