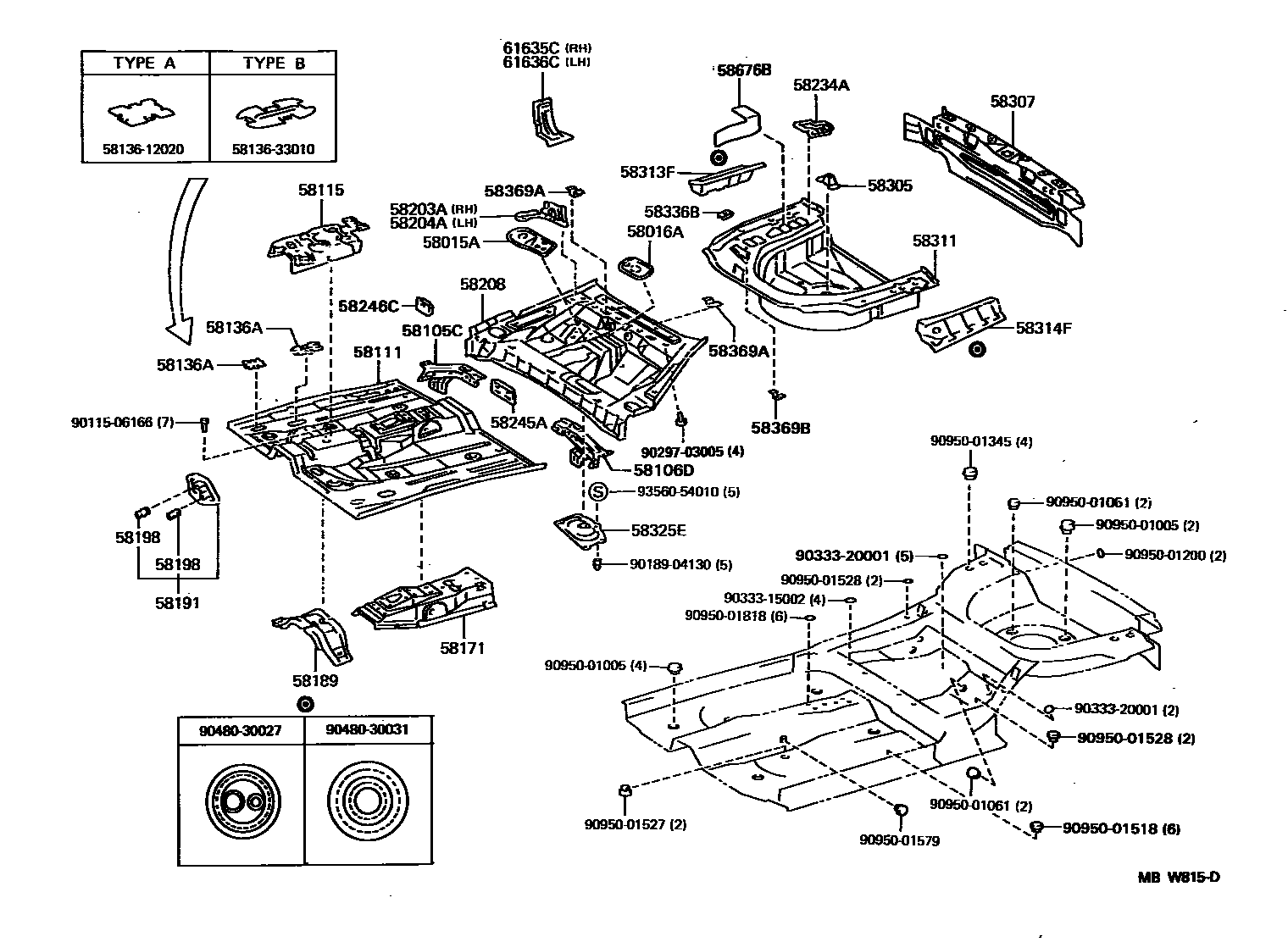

Toyota SCEPTER (WG,CP) — FLOOR PAN & LOWER BACK PANEL
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58105CGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT RH
58106DGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT LH
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58245ABRACKET, REAR SEAT HINGE, CENTER NO.1
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58676BPAD, REAR FLOOR SILENCER, NO.1 RH
61635CBRACE, QUARTER WHEEL HOUSE, RH
61636CBRACE, QUARTER WHEEL HOUSE, LH
5813612020COVER, FRONT FLOOR HOLE
main58136-12020
5813633010COVER, FRONT FLOOR HOLE
main58136-33010
9011506166
main90115-06166
9018904130
main90189-04130
9029703005
main90297-03005
9033315002
main90333-15002
9033320001
main90333-20001
9048030027
main90480-30027
9048030031
main90480-30031
9095001005
main90950-01005
9095001061
main90950-01061
9095001200
main90950-01200
9095001345
main90950-01345
9095001518
main90950-01518
9095001527
main90950-01527
9095001528
main90950-01528
9095001579
main90950-01579
9095001818
main90950-01818
9356054010
main93560-54010
48 parts on this diagram · 2 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota SCEPTER (WG,CP)
This section contains 58 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota SCEPTER (WG,CP). Key components include: REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH, GUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT RH, GUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT LH, PAN, FRONT FLOOR.
