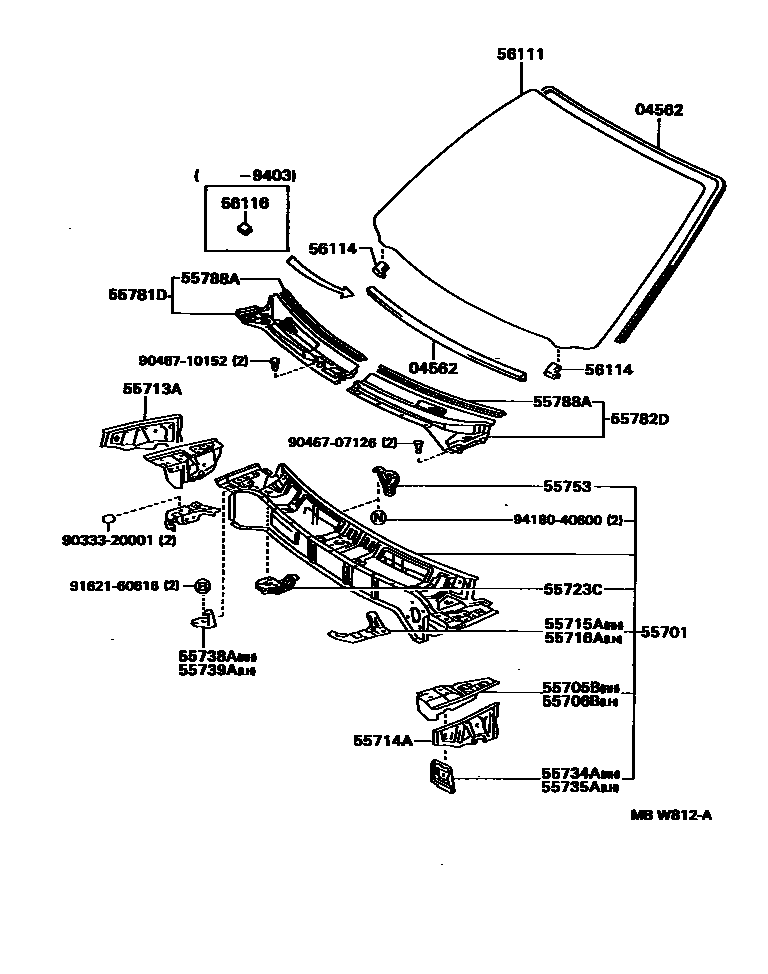

Toyota SCEPTER (WG,CP) — COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55723CREINFORCEMENT, COWL TOP SIDE, RH
55734APLATE, WATER GUARD, RH
55735APLATE, WATER GUARD, LH
55738ASTOPPER, HOOD, RH
55739ASTOPPER, HOOD, LH
55753BRACKET, INSTRUMENT PANEL TO COWL
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
WHITE
GREEN
56116SPACER, WINDSHIELD GLASS
9033320001
main90333-20001
9046707126
main90467-07126
9046710152
main90467-10152
9162160616
main91621-60616
9418040600
main94180-40600
25 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota SCEPTER (WG,CP)
This section contains 25 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SCEPTER (WG,CP). Key components include: DAM KIT, WINDSHIELD GLASS, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, PANEL, COWL TOP SIDE, RH.
