Toyota SCEPTER (WG,CP) — CONSOLE BOX & BRACKET

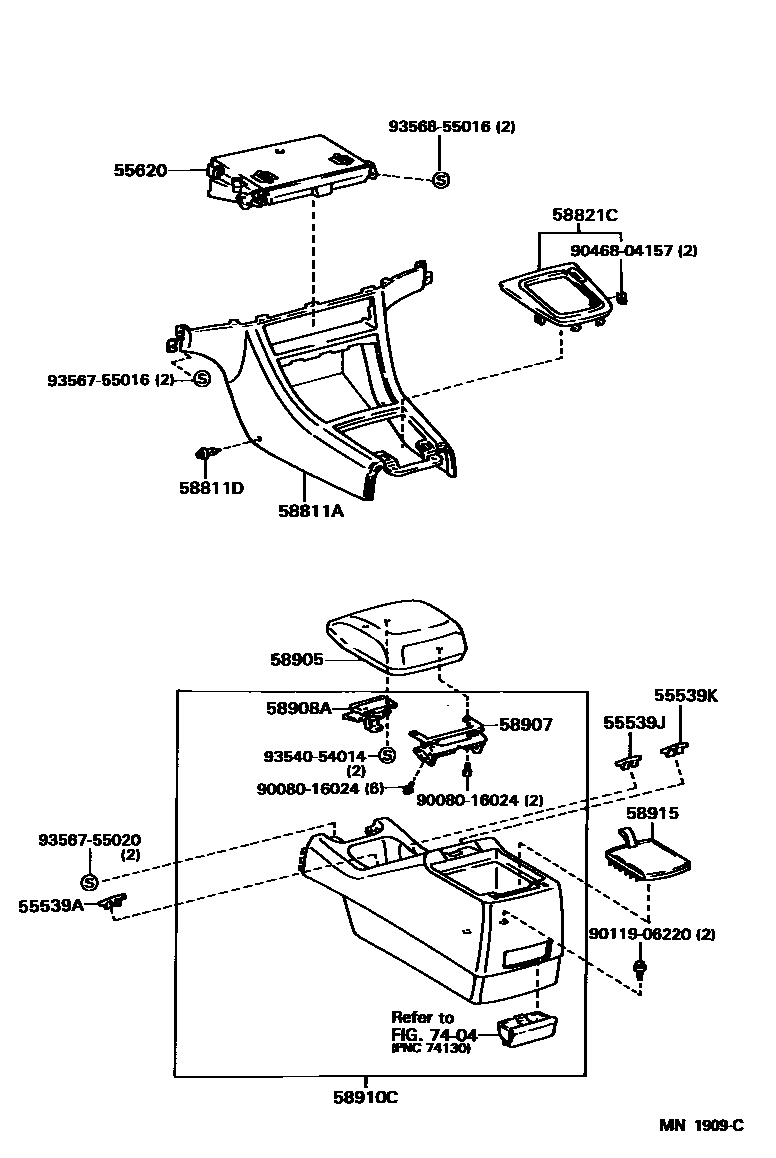

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-06010-B0i199207-199607
MEDIUM GRAY,TRIM1#
main55539-06010-E0i199212-199607
OAK,TRIM4#
55539JCOVER, SPARE SWITCH HOLE
main55539-06010-B0i199207-199607
MEDIUM GRAY,TRIM1#
main55539-06010-E0i199212-199607
OAK,TRIM4#
55539KCOVER, SPARE SWITCH HOLE
main55539-20080-B0i199207-199607
MEDIUM GRAY,TRIM1#
sub55539-12130
sub55539-32010
main55539-20080-E0i199212-199607
OAK,TRIM4#
sub55539-12130
sub55539-32010
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-33020-B0i199207-199607
MEDIUM GRAY,TRIM1#
sub55620-33040
main55620-33020-E0i199212-199607
OAK,TRIM4#
sub55620-33040
58811ABOX, CONSOLE, FRONT
main58810-33020-B0i199207-199607
MEDIUM GRAY,TRIM1#
main58810-33020-E0i199212-199607
OAK,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
main90467-06151-B0×2i199207-199607
MEDIUM GRAY,TRIM1#
sub90467-06153
main90467-06151-E0×2i199212-199607
OAK,TRIM4#
sub90467-06153
58821CPANEL, CONSOLE, UPPER
main58804-33030-B0i199207-199607
MEDIUM GRAY,TRIM1#
main58804-33030-E0i199212-199607
OAK,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-06010-B0i199207-199607
MEDIUM GRAY,TRIM1#
main58905-06010-E0i199212-199607
OAK,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-06010i199207-199607
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-06010i199207-199607
58910CBOX ASSY, CONSOLE, REAR
main58910-06010-B0i199310-199408
main58910-06010-E0i199310-199408
main58910-06020-B0i199408-199508
MEDIUM GRAY,TRIM1#
main58910-06020-E0i199408-199508
OAK,TRIM4#
58915PANEL, BOX BOTTOM
main58915-06010i199310-199404
main58915-06011i199408-199508
main58915-06020i199207-199408
7404
9008016024
main90080-16024
9011906220
main90119-06220
9046804157
main90468-04157
9354054014
main93540-54014
9356755016
main93567-55016
9356755020
main93567-55020
9356855016
main93568-55016

20 parts on this diagram · 1 diagram in section
