Toyota SCEPTER (SED) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33060i199211-199608

85160LINK ASSY, WINDSHIELD WIPER

main85150-33060i199211-199608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2i199211-199302

main90176-08049×2i199302-199511

main90176-08051×2i199511-199608

85190ARM ASSY, WINDSHIELD WIPER

main85211-33050i199211-199608

main85221-33030i199211-199608

85214ARUBBER, WIPER, RH

main85214-33060i199502-199608

85214BRUBBER, WIPER, LH

main85214-60020i199502-199608

85220BLADE ASSY, WINDSHIELD WIPER

main85212-33051i199211-199608

main85222-33120i199211-199608

main85291-22050i199211-199608

main85291-30030i199211-199608

85221BLADE, WINDSHIELD WIPER

main85213-20310i199211-199502

main85223-33040i199211-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33050i199502-199608

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33050i199502-199608

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20300i199502-199608

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20300i199502-199608

9011906187

main90119-06187

9095001796

main90950-01796

9095001811

main90950-01811

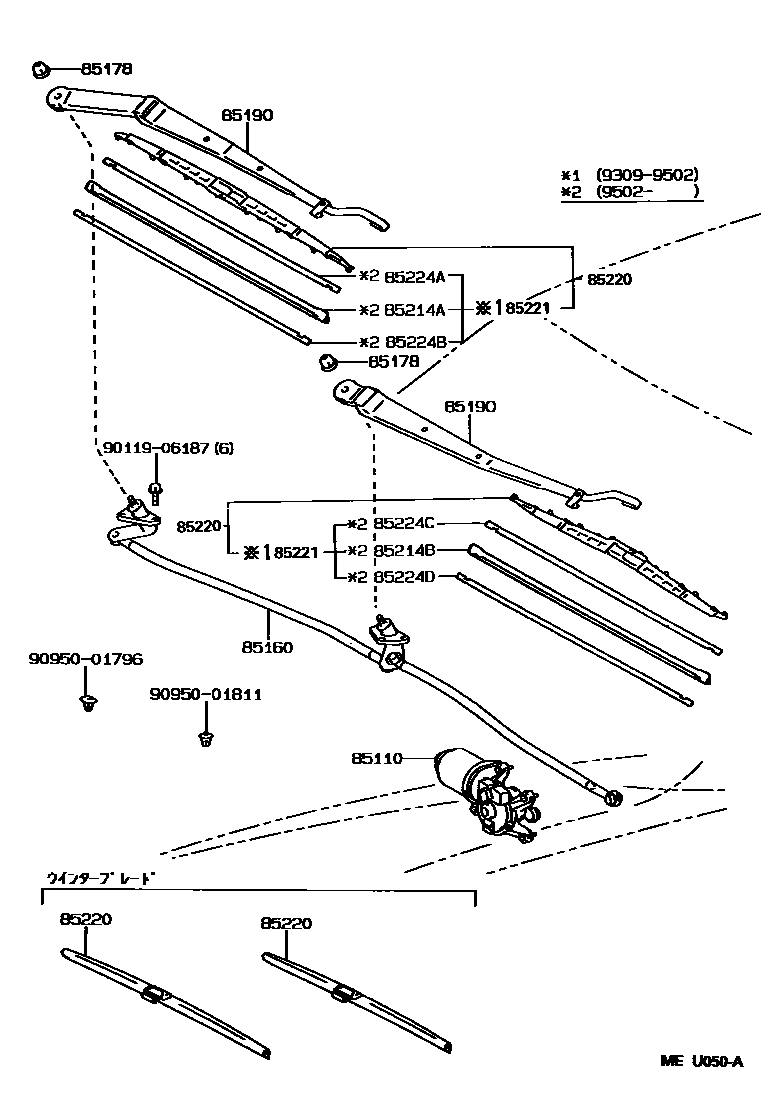

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota SCEPTER (SED)

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SCEPTER (SED). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, RUBBER, WIPER, RH.
