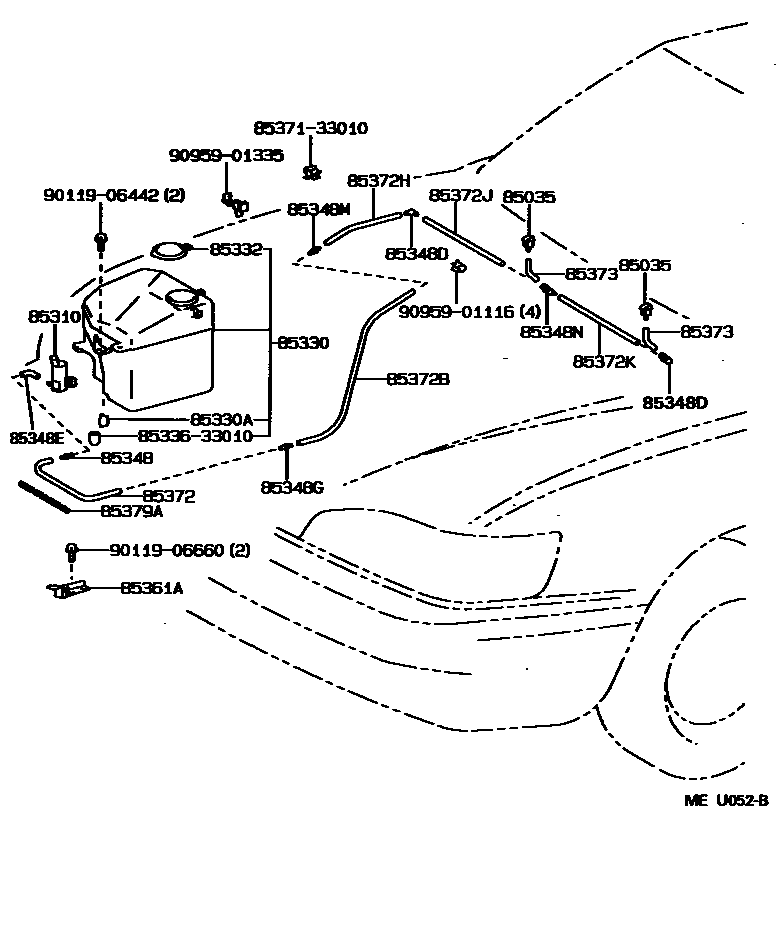

Toyota SCEPTER (SED) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85361ABRACKET, WINDSHIELD WASHER, NO.1
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85379ASPRING, WINDSHIELD WASHER HOSE
8533633010SWITCH ASSY, RESERVE TANK LEVEL WARNING
main85336-33010
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9011906442
main90119-06442
9011906660
main90119-06660
9095901116
main90959-01116
9095901335
main90959-01335
25 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota SCEPTER (SED)
This section contains 28 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SCEPTER (SED). Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
