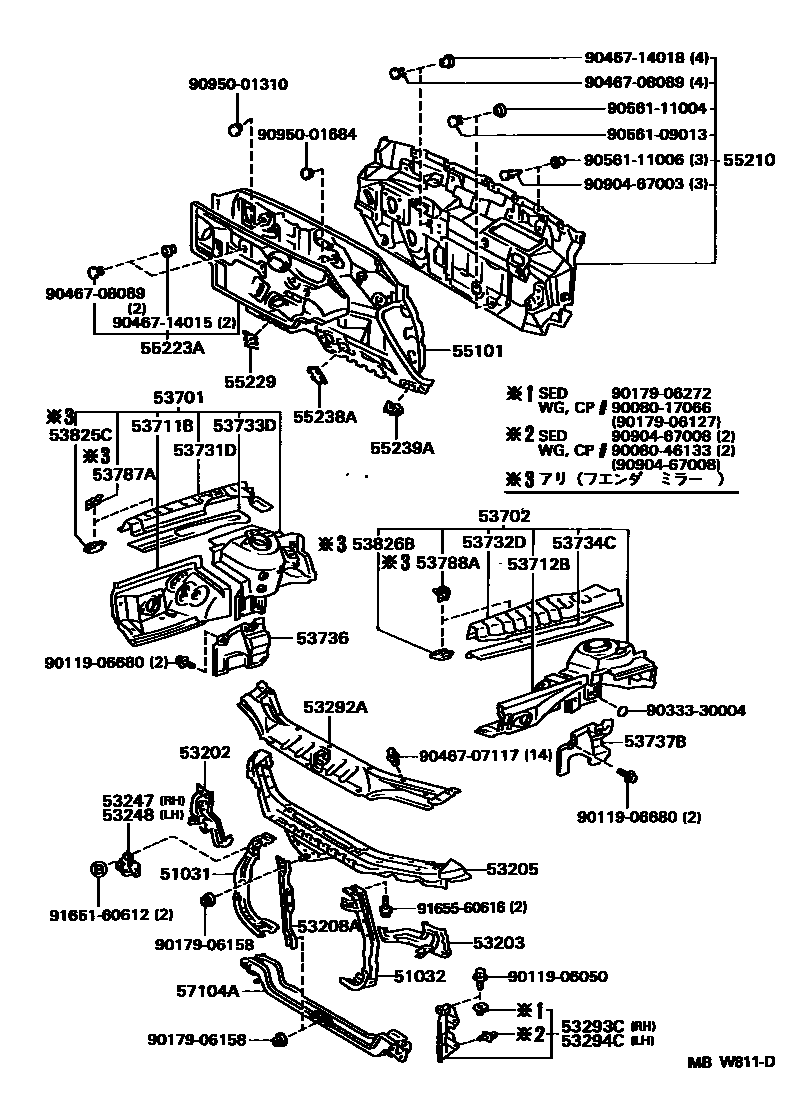

Toyota SCEPTER (SED) — FRONT FENDER APRON & DASH PANEL
51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH
51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53247BRACKET, HEADLAMP MOUNTING, INNER RH
53248BRACKET, HEADLAMP MOUNTING, INNER LH
53292ASEAL, RADIATOR SUPPORT, UPPER
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53787AGUSSET, FRONT FENDER APRON, LOWER RH
53788AGUSSET, FRONT FENDER APRON, LOWER LH
53825CPATCH, FRONT FENDER, FRONT RH
53826BPATCH, FRONT FENDER, UPPER LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
55238APLATE, DASH PANEL INSULATOR, NO.2
55239APLATE, DASH PANEL INSULATOR, NO.3
57104AMEMBER SUB-ASSY, FRONT CROSS
9008017066
main90080-17066
9008046133
main90080-46133
9011906050
main90119-06050
9011906680
main90119-06680
9017906127
main90179-06127
9017906158
main90179-06158
9017906272
main90179-06272
9033330004
main90333-30004
9046707117
main90467-07117
9046708089
main90467-08089
9046714015
main90467-14015
9046714018
main90467-14018
9056109013
main90561-09013
9056111004
main90561-11004
9056111006
main90561-11006
9090467003
main90904-67003
9090467008
main90904-67008
9095001310
main90950-01310
9095001684
main90950-01684
9165160612
main91651-60612
9165560616
main91655-60616
53 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota SCEPTER (SED)
This section contains 53 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota SCEPTER (SED). Key components include: GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH, GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER.
