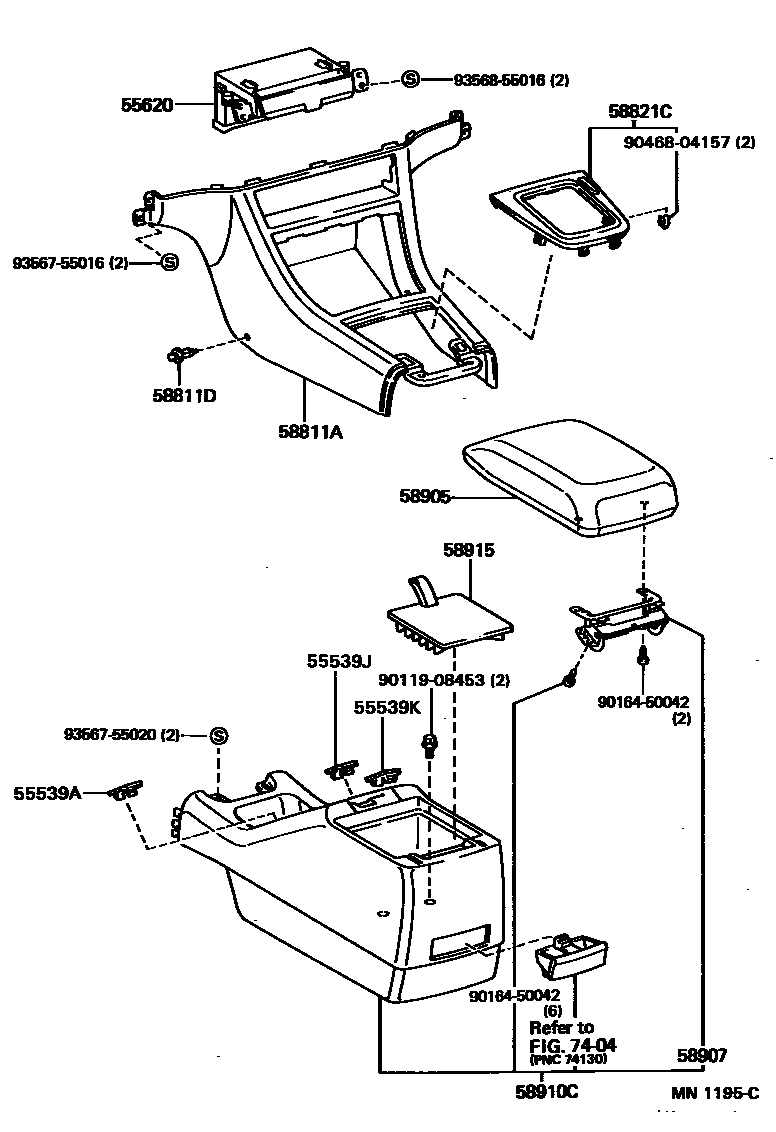

Toyota SCEPTER (SED) — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-32040-E2i199211-199308

OAK,TRIM4#

main55539-32040-S4i199211-199608

MI.GRAY,TRIM1#

55539JCOVER, SPARE SWITCH HOLE

main55539-32040-E2i199211-199308

OAK,TRIM4#

main55539-32040-S4i199211-199608

MI.GRAY,TRIM1#

55539KCOVER, SPARE SWITCH HOLE

main55539-20080-B0i199211-199608

MEDIUM GRAY,TRIM1#

main55539-20080-E0i199211-199308

OAK,TRIM4#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-33020-B0i199211-199608

MEDIUM GRAY,TRIM1#

main55620-33020-E0i199211-199308

OAK,TRIM4#

58811ABOX, CONSOLE, FRONT

main58810-33020-B0i199211-199608

MEDIUM GRAY,TRIM1#

main58810-33020-E0i199211-199308

OAK,TRIM4#

58811DCLIP(FOR CONSOLE BOX)

main90467-06151-B0i199211-199608

MEDIUM GRAY,TRIM1#

main90467-06151-E0i199211-199308

OAK,TRIM4#

58821CPANEL, CONSOLE, UPPER

main58804-33030-B0i199211-199608

MEDIUM GRAY,TRIM1#

main58804-33030-E0i199211-199308

OAK,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-33010-03i199211-199408

MEDIUM GRAY,TRIM1#

main58905-33010-E0i199211-199308

OAK,TRIM4#

main58905-33010-S4i199408-199608

MD.GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-33010i199211-199608

58910CBOX ASSY, CONSOLE, REAR

main58910-33010-03i199211-199408

main58910-33010-E0i199211-199308

main58910-33010-S4i199408-199508

main58910-33010-S4i199508-199608

MD.GRAY,TRIM1#

main58910-33020-03i199211-199408

MEDIUM GRAY,TRIM1#

main58910-33020-E0i199211-199308

OAK,TRIM4#

main58910-33020-S4i199408-199508

MD.GRAY,TRIM1#

58915PANEL, BOX BOTTOM

main58915-33010i199211-199301

main58915-33011i199301-199508

main58915-33011i199508-199608

main58915-33020i199211-199508

7404ASH RECEPTACLE

→ Go to FIG 74-04

9011908453

main90119-08453

9016450042

main90164-50042

9046804157

main90468-04157

9356755016

main93567-55016

9356755020

main93567-55020

9356855016

main93568-55016

18 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota SCEPTER (SED)

This section contains 18 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SCEPTER (SED). Key components include: COVER, SPARE SWITCH HOLE, HOLDER ASSY, INSTRUMENT PANEL CUP, BOX, CONSOLE, FRONT.
