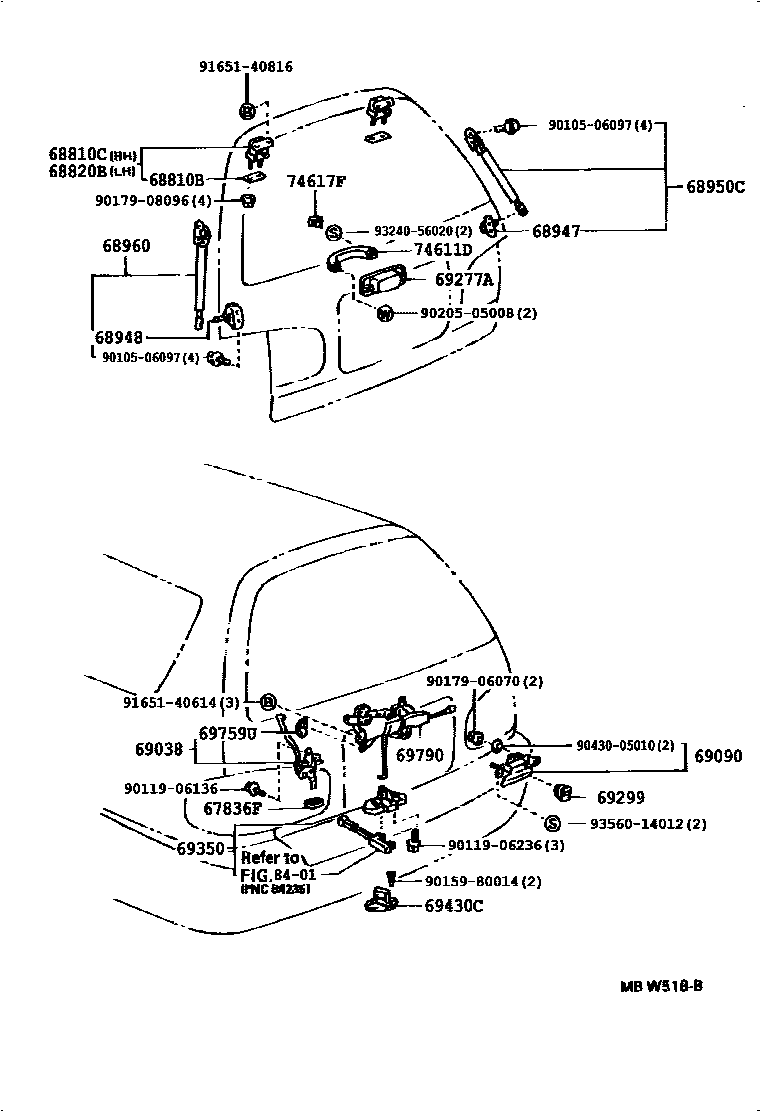

Toyota SCEPTER (SED) — BACK DOOR LOCK & HANDLE
67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
68810BPAD, BACK DOOR HINGE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69038PROTECTOR SUB-ASSY, BACK DOOR CHILD
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69277ABEZEL, BACK DOOR INSIDE HANDLE
69299GROMMET, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69759USNAP, BACK DOOR LOCK CONTROL LINK
69790CONTROL ASSY, BACK DOOR LOCK
74611DGRIP, ASSIST, BACK DOOR
74617FPLUG, ASSIST GRIP
8401SWITCH & RELAY & COMPUTER
9010506097
main90105-06097
9011906136
main90119-06136
9011906236
main90119-06236
9015980014
main90159-80014
9017906070
main90179-06070
9017908096
main90179-08096
9020505008
main90205-05008
9043005010
main90430-05010
9165140614
main91651-40614
9165140816
main91651-40816
9324056020
main93240-56020
9356014012
main93560-14012
31 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota SCEPTER (SED)
This section contains 31 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota SCEPTER (SED). Key components include: COVER, REAR DOOR LOCK CHILD PROTECTION, LH, PAD, BACK DOOR HINGE, HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, BRACKET, BACK DOOR DAMPER STAY, LOWER RH.
