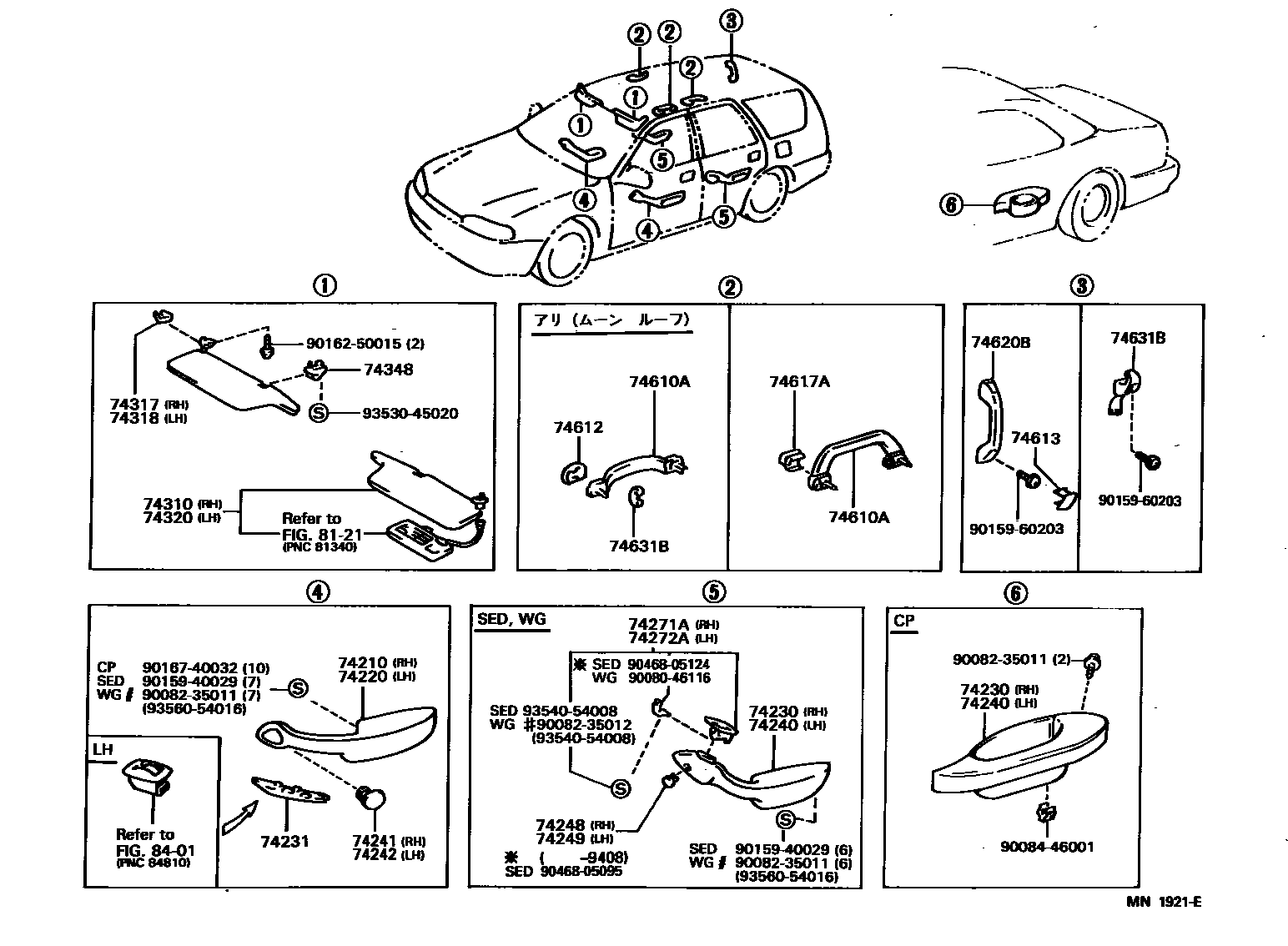

Toyota SCEPTER (SED) — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-32070-E0i199211-199308

OAK,TRIM4#

main74210-32070-S4i199211-199308

MI.GRAY,TRIM1#

main74210-33010-B0i199408-199608

MEDIUM GRAY,TRIM1#

main74210-33020-B0i199308-199408

MEDIUM GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-32070-E0i199211-199308

OAK,TRIM4#

main74220-32070-S4i199211-199308

MI.GRAY,TRIM1#

main74220-33010-B0i199408-199608

MEDIUM GRAY,TRIM1#

main74220-33020-B0i199308-199408

MEDIUM GRAY,TRIM1#

74230ARMREST ASSY, REAR, RH

main74250-06030-B0i199404-199608

MEDIUM GRAY,TRIM1#

main74250-32050-E0i199211-199308

OAK,TRIM4#

main74250-32050-S4i199211-199308

MI.GRAY,TRIM1#

main74250-33010-B0i199408-199608

MEDIUM GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-32150-B0i199211-199408

MEDIUM GRAY,TRIM1#

main74231-32150-E0i199211-199308

OAK,TRIM4#

main74231-33050-B0i199408-199608

MD.GRAY,TRIM1#

74240ARMREST ASSY, REAR, LH

main74260-06030-B0i199404-199608

MEDIUM GRAY,TRIM1#

main74260-32050-E0i199211-199308

OAK,TRIM4#

main74260-32050-S4i199211-199308

MI.GRAY,TRIM1#

main74260-33010-B0i199308-199404

MEDIUM GRAY,TRIM1#

74241PLUG, FRONT DOOR ARMREST, RH

main74241-32030-B0i199408-199608

MI.GRAY,TRIM1#

74242PLUG, FRONT DOOR ARMREST, LH

main74242-32030-B0i199408-199608

MI.GRAY,TRIM1#

74248PLUG, REAR DOOR ARMREST, RH

main74248-32020-B0i199211-199608

MI.GRAY,TRIM1#

main74248-32020-E0i199211-199308

OAK,TRIM4#

74249PLUG, REAR DOOR ARMREST, LH

main74249-32020-B0i199211-199608

MI.GRAY,TRIM1#

main74249-32020-E0i199211-199308

OAK,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-32030-E0i199211-199308

OAK,TRIM4#

main74271-32030-S4i199211-199409

MI.GRAY,TRIM1#

main74271-33040-B0i199409-199608

MD.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-32030-E0i199211-199308

OAK,TRIM4#

main74272-32030-S4i199211-199409

MI.GRAY,TRIM1#

main74272-33040-B0i199409-199608

MD.GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-33130-B0i199211-199408

main74310-33130-E0i199211-199308

main74310-33370-B0i199211-199408

LIGHT GRAY,TRIM1#

main74310-33370-E0i199211-199308

LIGHT OAK,TRIM4#

main74310-33380-B0i199211-199408

main74310-33380-E0i199211-199308

main74310-33390-B0i199211-199408

main74310-33390-E0i199211-199308

main74310-33500-B0i199408-199508

LIGHT GRAY,TRIM1#

main74310-33510-B0i199508-199608

LIGHT GRAY,TRIM1#

main74310-33520-B0i199408-199508

main74310-33530-B0i199508-199608

74317COVER, VISOR BRACKET, RH

main74317-32010-B6i199211-199608

LIGHT GRAY,TRIM1#

main74317-32010-E1i199211-199308

LIGHT OAK,TRIM4#

74318COVER, VISOR BRACKET, LH

main74317-32010-B6i199211-199608

LIGHT GRAY,TRIM1#

main74317-32010-E1i199211-199308

LIGHT OAK,TRIM4#

74320VISOR ASSY, LH

main74320-33350-B0i199211-199408

LIGHT GRAY,TRIM1#

main74320-33350-E0i199211-199308

LIGHT OAK,TRIM4#

main74320-33360-B0i199211-199408

main74320-33360-E0i199211-199308

main74320-33460-B0i199408-199608

LIGHT GRAY,TRIM1#

main74320-33470-B0i199408-199608

74348HOLDER, VISOR

main74348-33020-B1×2i199211-199406

LIGHT GRAY,TRIM1#

main74348-33020-E0×2i199211-199308

LIGHT OAK,TRIM4#

main74348-33030-B1×2i199406-199608

LT.GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-22070-B0×3i199211-199608

main74610-22070-E1×3i199211-199308

main74610-32070-B0i199308-199608

main74610-32080-B6i199211-199308

main74610-32080-E0i199211-199308

main74610-33010-B0×2i199308-199608

main74610-33020-03×2i199211-199308

main74610-33020-E0×2i199211-199308

74612COVER, ASSIST GRIP

main74612-22050-B0×6i199211-199608

LIGHT GRAY,TRIM1#

main74612-22050-E2×6i199211-199308

LIGHT OAK,TRIM4#

74613PLUG, ASSIST GRIP

74617APLUG, ASSIST GRIP

main74617-32010-B0×6i199211-199608

LIGHT GRAY,TRIM1#

main74617-32010-E0×6i199211-199308

LIGHT OAK,TRIM4#

74620BGRIP ASSY, ASSIST, REAR

74631BHOOK, COAT

main74631-22030-B0×2i199211-199508

LIGHT GRAY,TRIM1#

main74631-22030-E0×2i199211-199308

LIGHT OAK,TRIM4#

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008046116

main90080-46116

9008235011

main90082-35011

9008235012

main90082-35012

9008446001

main90084-46001

9015940029

main90159-40029

9015960203

main90159-60203

9016250015

main90162-50015

9016740032

main90167-40032

9046805095

main90468-05095

9046805124

main90468-05124

9353045020

main93530-45020

9354054008

main93540-54008

9356054016

main93560-54016

37 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota SCEPTER (SED)

This section contains 37 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SCEPTER (SED). Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, ARMREST ASSY, REAR, LH.
