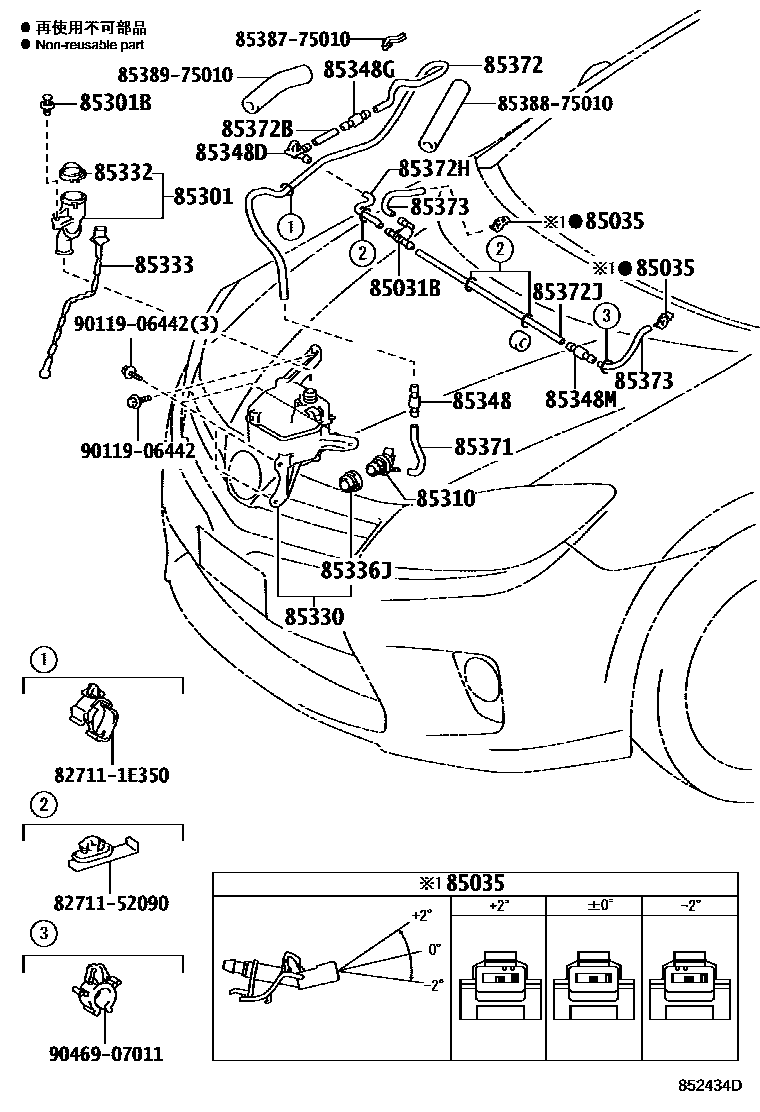

Toyota SAI — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-28020i200911-201308

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i200911-201308

main85381-12340×2i201308

main85381-12350×2i201308

85301INLET SUB-ASSY, WASHER

main85319-75010i200911-201308

85301BCLIP, WASHER

main90467-07211i200911-201308

main90467-07217i201406

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-71010i200911-201308

85330JAR ASSY, WINDSHIELD WASHER

main85355-75021supersedes 85315-75010i200911-201111

main85315-75020supersedes 85315-75010i200911-201308

main85355-75040supersedes 85315-75010i201308

85332CAP, WINDSHIELD WASHER JAR

main85316-75010i200911-201308

85333FILTER, WINDSHIELD WASHER JAR

main85318-47110supersedes 85312-30080i200911-201111

85336JPROTECTOR, WASHER JAR

main85336-60300i200911-201308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200911-201308

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-32220i201308

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201308

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i201308

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080supersedes 85355-14481i200911-201111

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200911-201308

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200911-201308

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i200911-201308

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i200911-201308

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200911-201308

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8538775010CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-75010

8538875010CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-75010

8538975010PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-75010

9011906442

main90119-06442

9046907011

main90469-07011

26 parts on this diagram · 4 diagrams in section

WINDSHIELD WASHER for Toyota SAI

This section contains 27 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SAI. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, CLIP, WASHER.
