Toyota SAI — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK & IVORY NO.8,TRIM00
BLACK & BORDEAU NO.083,TRIM2#; BLACK & BORDEAU NO.083,TRIM20
BLACK/PURPLE,TRIM22
DK.BROWN & IVORY NO.8,TRIM01
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33550FSHIFT ASSY, TRANSMISSION INSTRUMENT PANEL
BLACK & IVORY NO.8,TRIM00
BLACK & BORDEAU NO.083,TRIM2#
BLACK/PURPLE,TRIM22
DK. BROWN & IVORY NO.8,TRIM01
35906WIRE SUB-ASSY, INDICATOR LAMP
9017908247
main90179-08247

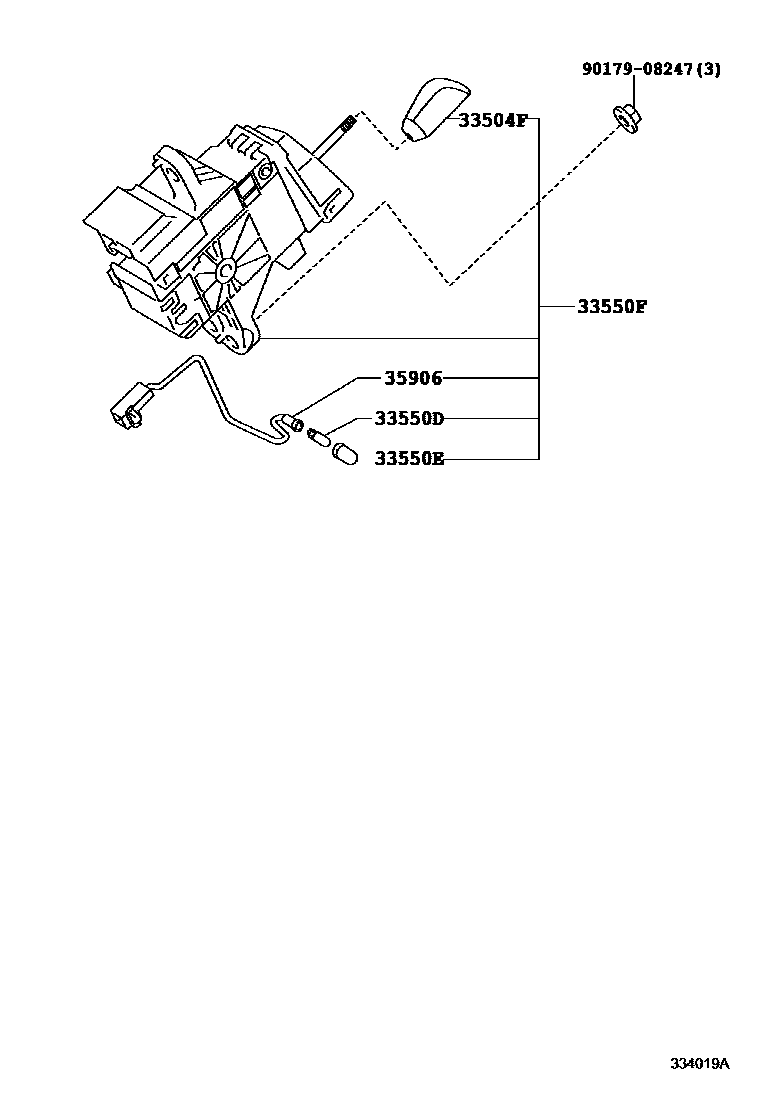

6 parts on this diagram · 2 diagrams in section
SHIFT LEVER & RETAINER for Toyota SAI
This section contains 6 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota SAI. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, SHIFT ASSY, TRANSMISSION INSTRUMENT PANEL, WIRE SUB-ASSY, INDICATOR LAMP.
