Toyota SAI — MIRROR

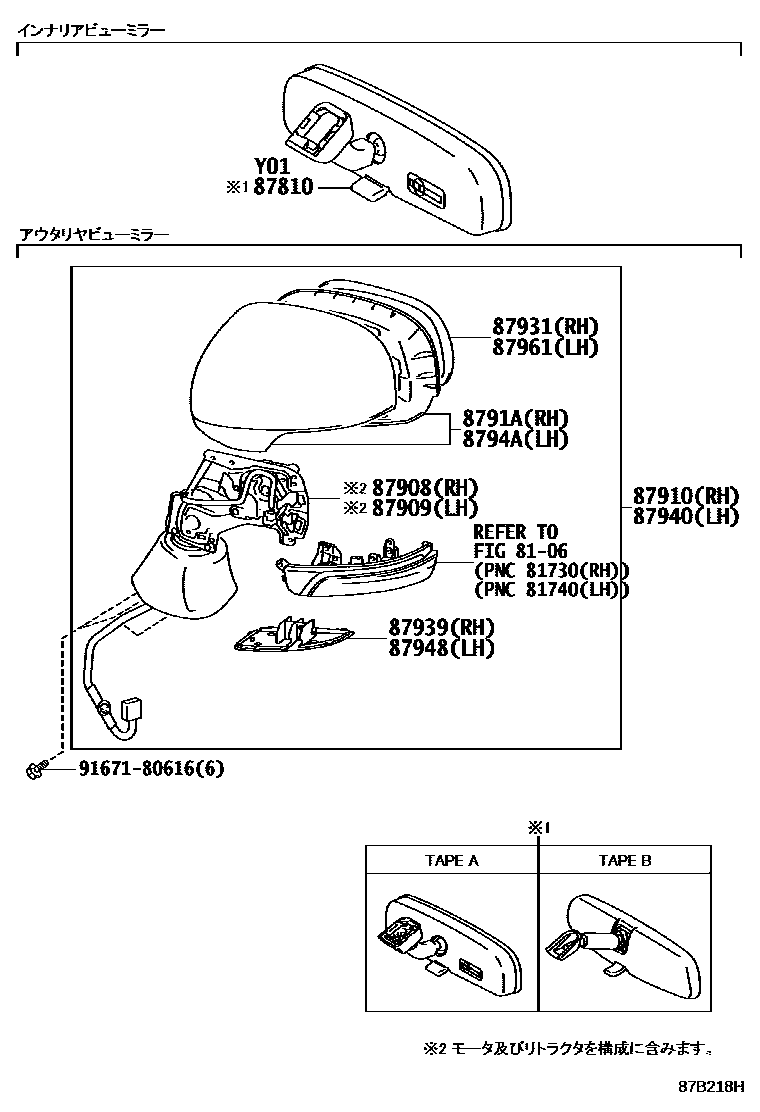

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-06080i201111-201308

main87810-0W260supersedes 87810-60191i201308-201505

main87810-0WG90i201505-201802

main87810-60191i200911-201308

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-75100-A0supersedes 87908-75110-A0i200911-201308

main87908-75100-B0supersedes 87908-75110-B0i200911-201308

main87908-75100-B1supersedes 87908-75090-B1i201010-201308

main87908-75100-C0supersedes 87908-75110-C0i200911-201308

main87908-75100-D0supersedes 87908-75090-D0i200911-201308

main87908-75100-E0supersedes 87908-75090-E0i200911-201110

main87908-75100-H0supersedes 87908-75090-H0i200911-201308

main87908-75100-J0supersedes 87908-75110-J0i200911-201308

main87908-75130-A0i201308-201802

main87908-75130-B0i201308-201802

main87908-75130-B1supersedes 87908-75110-B1i201308-201802

main87908-75130-C0i201308-201802

main87908-75130-C1i201505-201802

SPARKLING BLACK PEARL CS.,220

main87908-75130-D0supersedes 87908-75110-D0i201308-201802

main87908-75130-H0supersedes 87908-75110-H0i201308-201802

main87908-75130-J0i201308-201802

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-75100-A0supersedes 87909-75110-A0i200911-201308

main87909-75100-B0supersedes 87909-75110-B0i200911-201308

main87909-75100-B1supersedes 87909-75090-B1i201010-201308

main87909-75100-C0supersedes 87909-75110-C0i200911-201308

main87909-75100-D0supersedes 87909-75090-D0i200911-201308

main87909-75100-E0supersedes 87909-75090-E0i200911-201110

main87909-75100-H0supersedes 87909-75090-H0i200911-201308

main87909-75100-J0supersedes 87909-75110-J0i200911-201308

main87909-75130-A0i201308-201802

main87909-75130-B0i201308-201802

main87909-75130-B1supersedes 87909-75110-B1i201308-201802

main87909-75130-C0i201308-201802

main87909-75130-C1i201505-201802

SPARKLING BLACK PEARL CS.,220

main87909-75130-D0supersedes 87909-75110-D0i201308-201802

main87909-75130-H0supersedes 87909-75110-H0i201308-201802

main87909-75130-J0i201308-201802

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-75100-A0supersedes 87910-75110-A0i200911-201308

main87910-75100-B0supersedes 87910-75110-B0i200911-201308

main87910-75100-B1supersedes 87910-75090-B1i201010-201308

main87910-75100-C0supersedes 87910-75110-C0i200911-201308

main87910-75100-D0supersedes 87910-75090-D0i200911-201308

main87910-75100-E0supersedes 87910-75090-E0i200911-201110

main87910-75100-H0supersedes 87910-75090-H0i200911-201308

main87910-75100-J0supersedes 87910-75110-J0i200911-201308

main87910-75130-A0i201308-201802

main87910-75130-B0i201308-201802

main87910-75130-B1supersedes 87910-75110-B1i201308-201802

main87910-75130-C0i201308-201802

main87910-75130-C1i201505-201802

SPARKLING BLACK PEARL CS.,220

main87910-75130-D0supersedes 87910-75110-D0i201308-201802

main87910-75130-H0supersedes 87910-75110-H0i201308-201802

main87910-75130-J0i201308-201802

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30A50-A3i200911-201308

WHITE PEARL CS.,070

main8791A-30A50-B0i200911-201308

SILVER ME.,1F7

main8791A-30A50-B3i201010-201308

GRAY ME.,1G3

main8791A-30A50-C0i200911-201308

BLACK,202

main8791A-30A50-D0i200911-201308

BLACKISH RED MC.,3R0

main8791A-30A50-E1i200911-201110

BEIGE ME.,4T8

main8791A-30A50-H0i200911-201308

AQUA M.M.,782

main8791A-30A50-J0i200911-201308

DK.BLUE MC.,8S6

main8791A-30B10-A1i201308-201802

WHITE PEARL CS.,070

main8791A-30B10-B0i201308-201802

SILVER ME.,1F7

main8791A-30B10-B2i201308-201802

GRAY M.M.,1H1

main8791A-30B10-C0i201308-201802

BLACK,202

main8791A-30B10-C2i201505-201802

SPARKLING BLACK PEARL CS.,220

main8791A-30B10-D1i201308-201802

RED M.M.,3R3

main8791A-30B10-H0i201308-201802

CLEAR STREAM ME.,787

main8791A-30B10-J0i201308-201802

DK.BLUE M.M.,8S6

87931OUTER MIRROR, RH

main87931-72020supersedes 87931-75110i200911-201308

main87931-75130i201308-201802

87939COVER, OUTER MIRROR HOLE, RH

main87939-30B10-A1i201308

WHITE PEARL CS.,070

main87939-30B10-B0i201308

SILVER ME.,1F7

main87939-30B10-B2i201308

GRAY M.M.,1H1

main87939-30B10-C0i201308

BLACK,202

main87939-30B10-C2i201505

SPARKLING BLACK PEARL CS.,220

main87939-30B10-D1i201308

RED M.M.,3R3

main87939-30B10-H0i201308

CLEAR STREAM ME.,787

main87939-30B10-J0i201308

DK.BLUE M.M.,8S6

main87939-75090i200911-201308

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-75100-A0supersedes 87940-75110-A0i200911-201308

main87940-75100-B0supersedes 87940-75110-B0i200911-201308

main87940-75100-B1supersedes 87940-75090-B1i201010-201308

main87940-75100-C0supersedes 87940-75110-C0i200911-201308

main87940-75100-D0supersedes 87940-75090-D0i200911-201308

main87940-75100-E0supersedes 87940-75090-E0i200911-201110

main87940-75100-H0supersedes 87940-75090-H0i200911-201308

main87940-75100-J0supersedes 87940-75110-J0i200911-201308

main87940-75130-A0i201308-201802

main87940-75130-B0i201308-201802

main87940-75130-B1supersedes 87940-75110-B1i201308-201802

main87940-75130-C0i201308-201802

main87940-75130-C1i201505-201802

SPARKLING BLACK PEARL CS.,220

main87940-75130-D0supersedes 87940-75110-D0i201308-201802

main87940-75130-H0supersedes 87940-75110-H0i201308-201802

main87940-75130-J0i201308-201802

87948COVER, OUTER MIRROR HOLE, LH

main87948-30B70-A1i201308

WHITE PEARL CS.,070

main87948-30B70-B0i201308

SILVER ME.,1F7

main87948-30B70-B2i201308

GRAY M.M.,1H1

main87948-30B70-C0i201308

BLACK,202

main87948-30B70-C2i201505

SPARKLING BLACK PEARL CS.,220

main87948-30B70-D1i201308

RED M.M.,3R3

main87948-30B70-H0i201308

CLEAR STREAM ME.,787

main87948-30B70-J0i201308

DK.BLUE M.M.,8S6

main87948-75090i200911-201308

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30B00-A3i200911-201308

WHITE PEARL CS.,070

main8794A-30B00-B0i200911-201308

SILVER ME.,1F7

main8794A-30B00-B3i201010-201308

GRAY ME.,1G3

main8794A-30B00-C0i200911-201308

BLACK,202

main8794A-30B00-D0i200911-201308

BLACKISH RED MC.,3R0

main8794A-30B00-E1i200911-201110

BEIGE ME.,4T8

main8794A-30B00-H0i200911-201308

AQUA M.M.,782

main8794A-30B00-J0i200911-201308

DK.BLUE MC.,8S6

main8794A-30B70-A1i201308-201802

WHITE PEARL CS.,070

main8794A-30B70-B0i201308-201802

SILVER ME.,1F7

main8794A-30B70-B2i201308-201802

GRAY M.M.,1H1

main8794A-30B70-C0i201308-201802

BLACK,202

main8794A-30B70-C2i201505-201802

SPARKLING BLACK PEARL CS.,220

main8794A-30B70-D1i201308-201802

RED M.M.,3R3

main8794A-30B70-H0i201308-201802

CLEAR STREAM ME.,787

main8794A-30B70-J0i201308-201802

DK.BLUE M.M.,8S6

87961MIRROR OUTER, LH

main87961-30B70supersedes 87961-75110i201308-201802

main87961-72020i200911-201308

9167180616

main91671-80616

13 parts on this diagram · 2 diagrams in section

MIRROR for Toyota SAI

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota SAI. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
