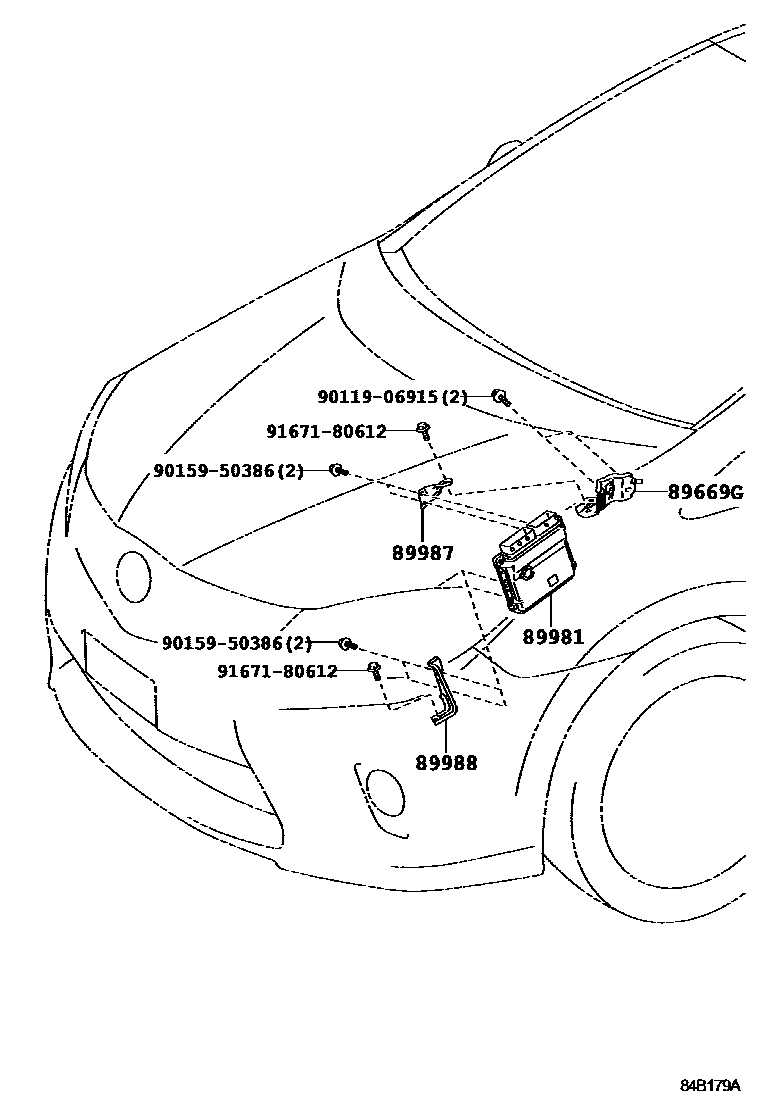

Toyota SAI — HEV CONTROL COMPUTER

89669GBRACKET, HYBRID VEHICLE CONTROL

main89669-47070iAZK10..CBU201308

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-75010iAZK10..CBU200911-201110

sub89981-75011

main89981-75110iAZK10..CBU201110-201204

sub89981-75111

main89981-75130iAZK10..CBU201308-201411

main89981-75131iAZK10..CBU201412-201505

main89981-75190iAZK10..CBU201204-201308

sub89981-75191

main89981-75220iAZK10..CBU201505

89987BRACKET, COMPUTER, NO.1

main89987-75010iAZK10..CBU200911-201308

89988BRACKET, COMPUTER, NO.2

main89988-75020iAZK10..CBU200911-201308

9011906915

main90119-06915

9015950386

main90159-50386

9167180612

main91671-80612

7 parts on this diagram · 1 diagram in section
